Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Dodge Our ID No.      005438
Model:      210CM28A-30K1 Ratio:      30:1
MO# or S/N      M60314-BFC Alt. S/N      079167-30-KK
IP Speed      1750 RPM HP rating      8.5 HP Cat. Rating
OP Speed:      58 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      8239 Lb-Inches Shaft Diameters High Speed:  210TC
Low Speed:  2 1/8
Weight      220 Lbs Approx. Assembly      Right Angle
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
30:1

58
8.5 HP
1170
39
6.7 HP
870
29
5.0 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

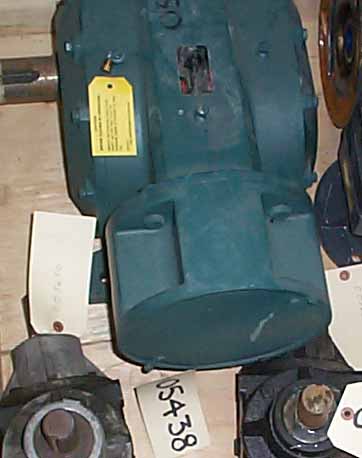

Click on images for larger view.
