Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      LINK BELT Our ID No.      005439
Model:      MWH-100-XX-2B-90
     Mtr Mtg XX 		Ratio:      90:1
MO# or S/N      KBF901001 Alt. S/N
IP Speed      1750 RPM HP rating      2.69 HP Cat. Rating
OP Speed:      19 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      6,988 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  1.875
Weight      150 Lbs Approx. Assembly      Assembly 2B, Right Angle Helical Worm
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
90:1

19
2.69 HP
1430
16
2.31 HP
1170
12
1.89 HP
870
9
1.47 HP
720
8
1.25 HP
580
6
1.03 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

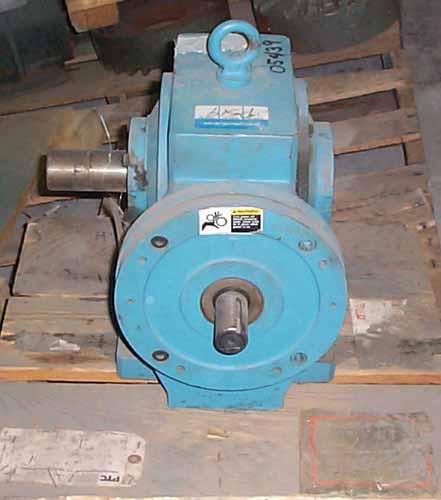

Click on images for larger view.
