Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Boston Gear Our ID No.      005442
Model:      F732-30-B7-G Ratio:      30:1
MO# or S/N       Alt. S/N
IP Speed      1750 HP rating      2.440 HP Cat. Rating
OP Speed:      58.33 SF / SC      1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      2140 Lb-Inches Shaft Diameters High Speed: 140 TC (.875 Hollow)
Low Speed:  1.375
Weight      90 Lbs Approx Assembly Worm Over

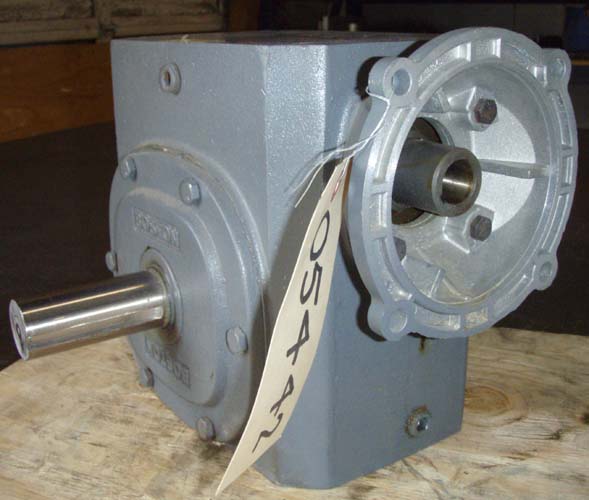

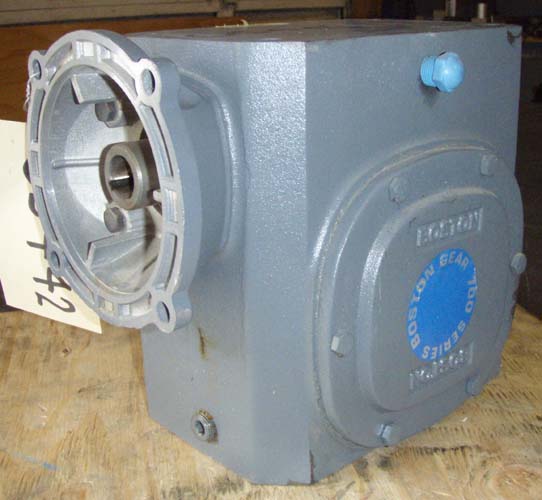

Left Hand (See pictures bellow)
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
