Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005450
Model:      1050FZ2A Ratio:      25.66:1
MO# or S/N      950U0498 Alt. S/N
IP Speed      1750 RPM HP rating      7.5 HP Cat. Rating      15.8 HP
OP Speed:      68 RPM SF / SC      Class II
Date      6/8/95 Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      14,300 Lb-Inches Shaft Diameters High Speed:  1.625
Low Speed:  2.500
Weight      360 Lbs Approx Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
25.66:1

68
15.8 HP
1430
56
13.0 HP
1170
45
10.7 HP
870
34
8.00 HP
720
28
6.65 HP
580
22
5.38 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

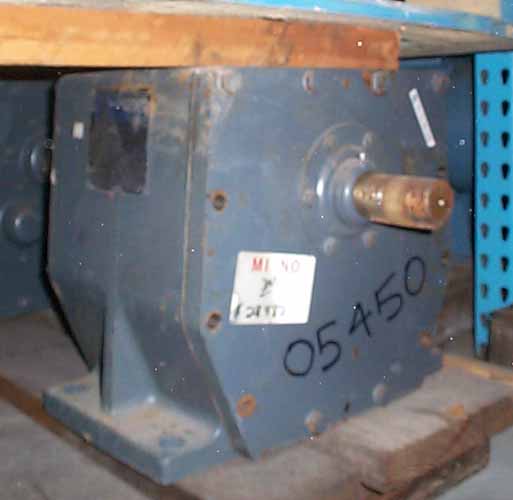

Click on images for larger view.
