Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005452
Model:      1050FZ3A Ratio:      58.36:1
MO# or S/N      96-082021-18 Alt. S/N
IP Speed      1750 RPM HP rating      5 HP Cat. Rating
OP Speed:      30 RPM SF / SC      1.25 - SF
Date      7/96 Oil Capacity      3.2
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      13,200 Lb-Inches Shaft Diameters High Speed:  1.625
Low Speed:  2.500
Weight      380 Lbs Approx Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
58.36:1

30
6.26 HP
1430
25
5.36 HP
1170
20
4.63 HP
870
15
3.51 HP
720
12.5
2.92 HP
580
10
2.36 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

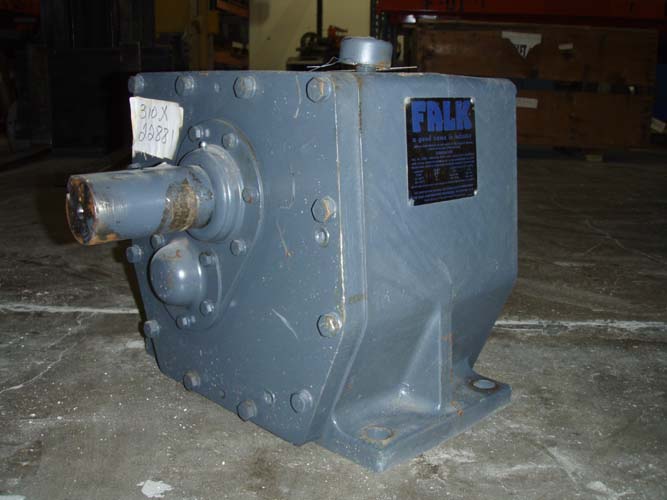

Click on images for larger view.
