Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005457
Model:      80BUWF2A Ratio:      126.6:1
MO# or S/N      7-749011-02 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating       Lb-Inches Shaft Diameters High Speed:  1.125
Low Speed:  3.000
Weight       Lbs Approx Assembly      Assembly #47
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
126.6:1

13.5
11.4 HP
1430
11
9.75 HP
1170
9
9.75 HP
870
6.8
6.53 HP
720
5.5
-
580
4.5
4.65 HP
Notes:

Condition: NEW SURPLUS
With Fan




Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

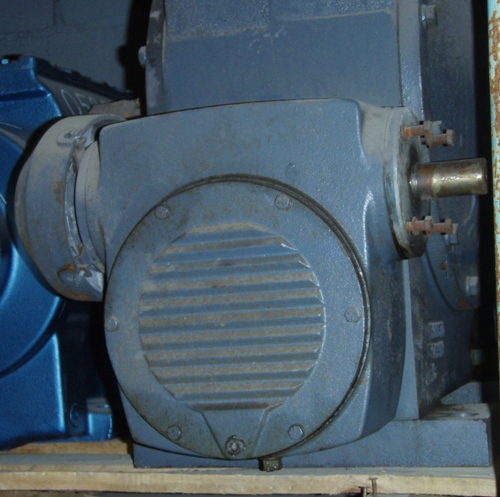

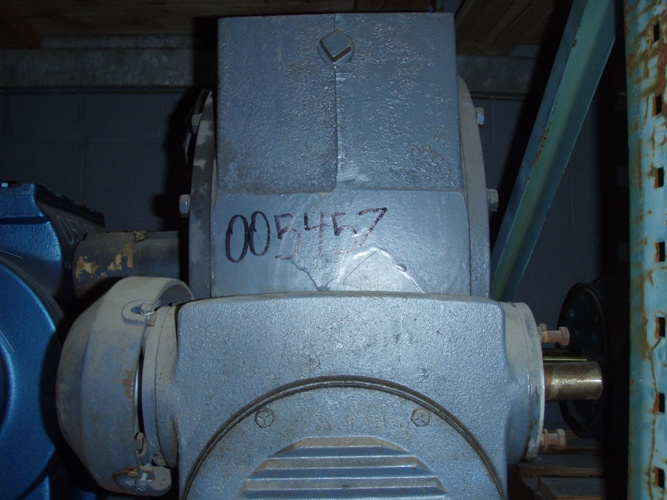

Click on images for larger view.
