Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

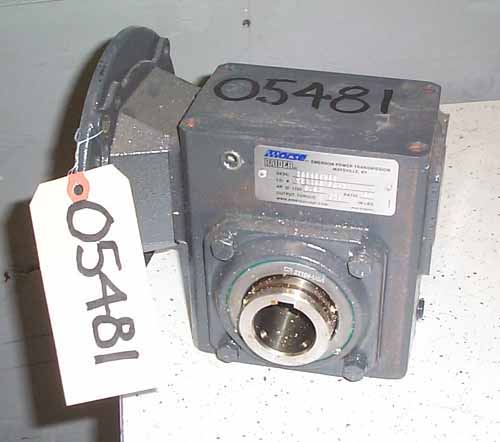

Manufacturer:      Morse Our ID No.      005481
Model:      206Q56H50 Ratio:      50:1
MO# or S/N      XE1169F04N Alt. S/N
IP Speed      1750 RPM HP rating      .64 HP Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      678 Lb-Inches Shaft Diameters High Speed:  .625, Hollow
Low Speed:  1.4375, Hollow
Weight      28 Lbs Approx. Assembly      Right Angle Worm, .625 Hollow, 1.4375 Hollow
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
50:1

27
.54 HP
1170
18
.43 HP
Notes:

Condition: NEW SURPLUS
