Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Boston Our ID No.      005493
Model:      F642A-20-B9 Ratio:      20:1
MO# or S/N      9-29399-62 Alt. S/N
IP Speed      1750 RPM HP rating      7.6 HP Cat. Rating
OP Speed:      88 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      5200 Lb-Inches Shaft Diameters High Speed:  180TC
Low Speed:  1.500, Solid
Weight      90 Lbs Approx. Assembly      Inline Helical, 180TC, 1.500 Solid
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
20:1
88
7.6 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

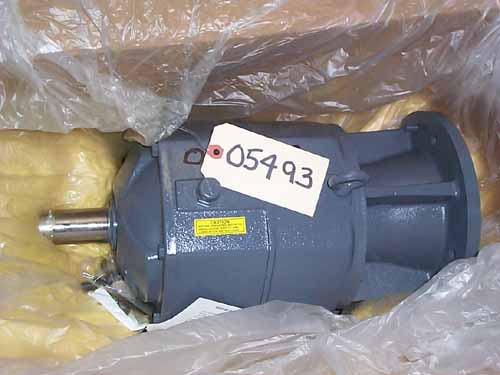

Click on images for larger view.
