- Speed Reducer Data Sheet -

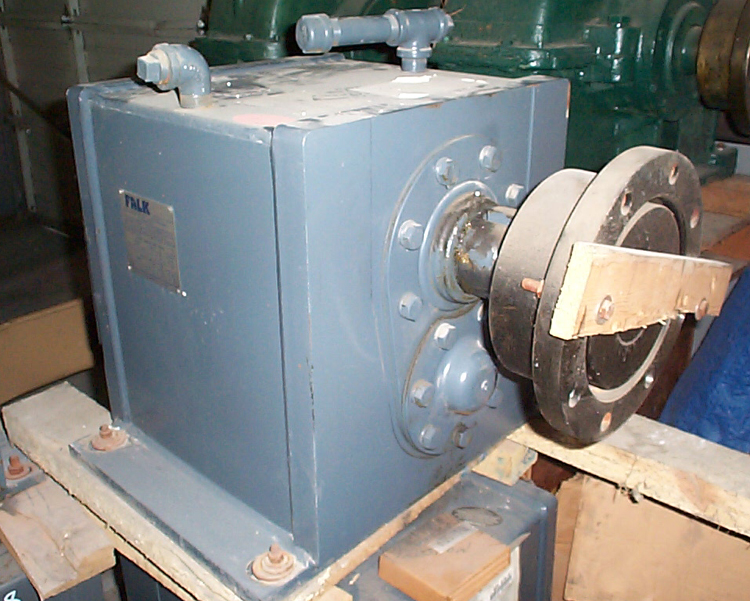

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005509
Model:      2080FC2AS Ratio:      25.17
MO# or S/N      97-032894-08 Alt. S/N
IP Speed      1750 HP rating      40 Cat. Rating      65.9
OP Speed:      68 SF / SC      1.65 - SF
Date      11/97 Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      87,600 Shaft Diameters High Speed:  2.250
Low Speed:  3.500
Weight      750 Assembly       Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/No Cooling
1750
25.17

68
96.7 HP
75.6 HP
1430
56
79.8 HP
75.9 HP
1170
45
65.9 HP
48.3 HP
870
34
49.4 HP
54.0 HP
720
28
41.1 HP
57.0 HP
580
22
33.3 HP
58.3 HP
Notes:

Condition: NEW SURPLUS
High Speed Shaft Coupling=1015G20
Low Speed Shaft Coupling=1035G20
Modified For Wall Mount
With Stand Pipe, can be converted back for horizontal mount
