Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005521
Model:      2140YBXD2KS Ratio:      25.39:1
MO# or S/N      96-067386-01 Alt. S/N
IP Speed      1437 RPM HP rating      125 HP Cat. Rating
OP Speed:      56.3 RPM SF / SC      3.65 - SF
Date      8/96 Oil Capacity      94
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      558,000 Lb-Inches Shaft Diameters High Speed:  3.500
Low Speed:  7.250
Weight      10,000 Lbs. Approx Assembly      Right Angle
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/No Cooling
1750
25.39:1

68
611 HP
345 HP
1430
56
512 HP
445 HP
1170
45
428 HP
621 HP
870
34
328 HP
-
720
28
276 HP
-
580
22
227 HP
-
Notes:

Condition: USED SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

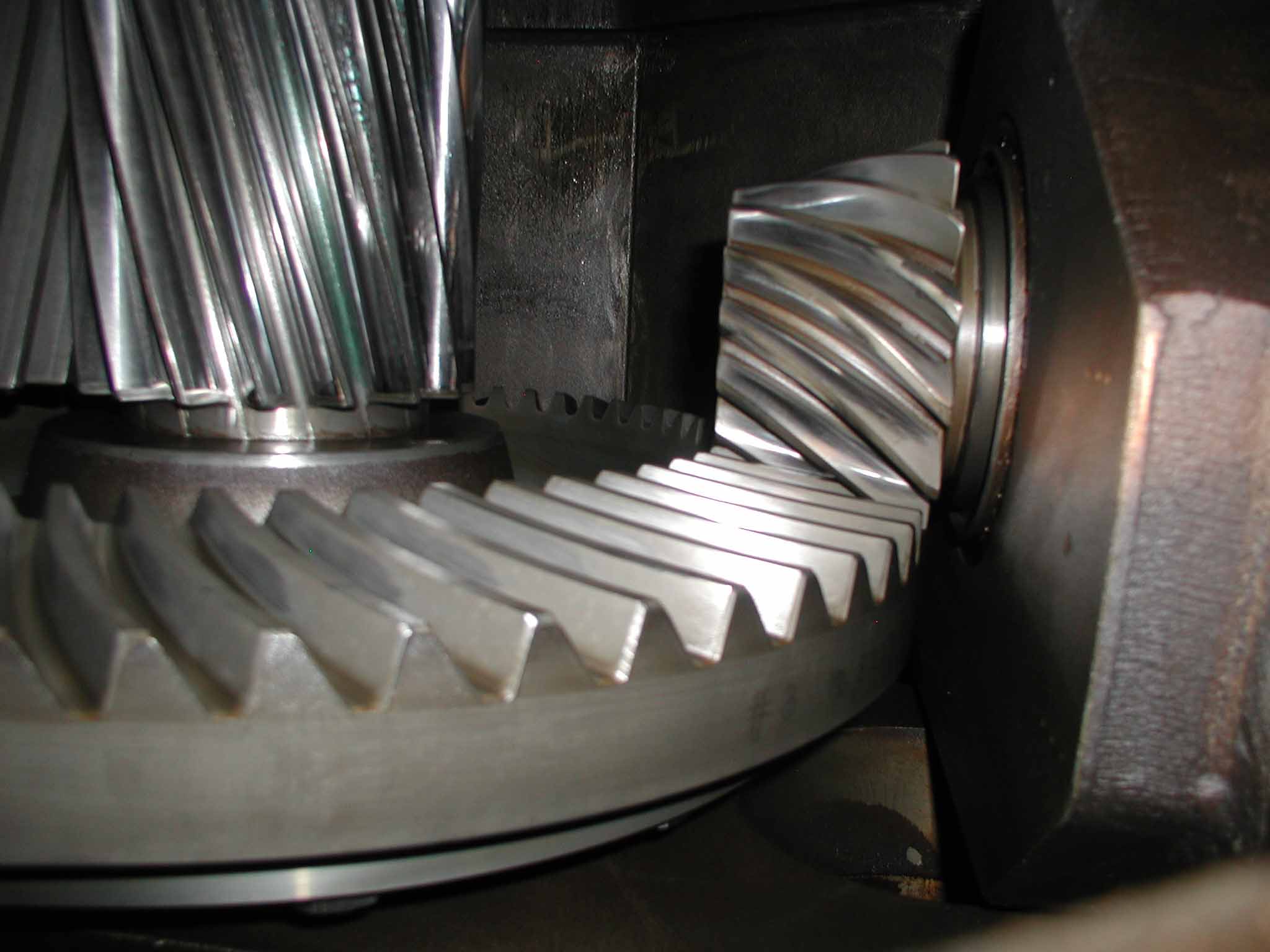

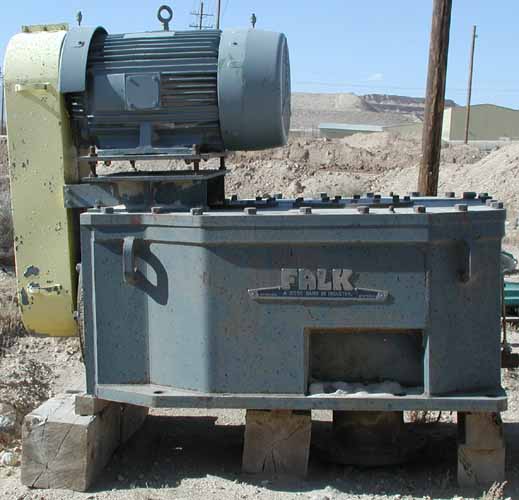

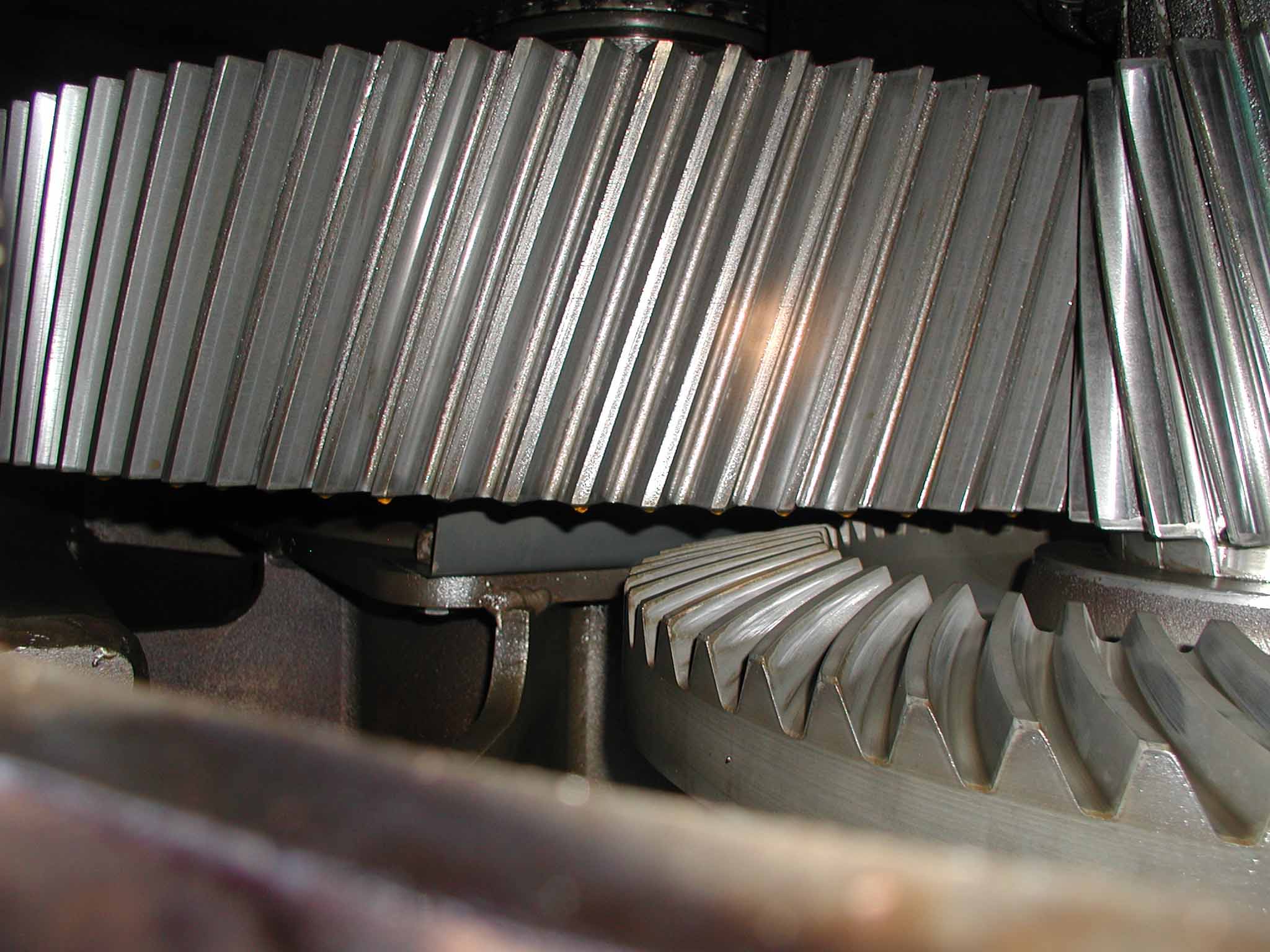

Click on images for larger view.
