Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005522
Model:      405A1-A Ratio:      3.600:1
MO# or S/N      9-066736 Alt. S/N
IP Speed      1200 RPM HP rating      1000 HP Cat. Rating
OP Speed:      333.3 RPM SF / SC      1.11 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      208,000 Lb-Inches Shaft Diameters High Speed:  4.000
Low Speed:  5.000
Weight      2000 Lbs Approx Assembly      Assembly #19, Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/No Cooling
1750
3.600:1

486
1607 HP
1050 HP
1430
397
1342 HP
973 HP
1170
325
1106 HP
911 HP
870
242
844 HP
793 HP
720
200
708 HP
-
580
161
577 HP
-
Notes:

Condition: USED SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

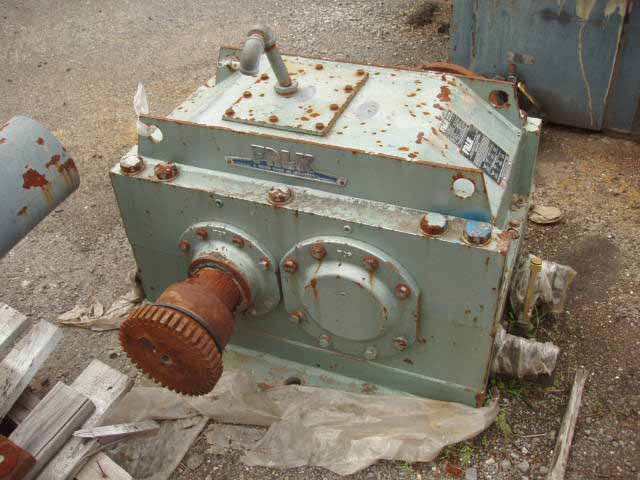

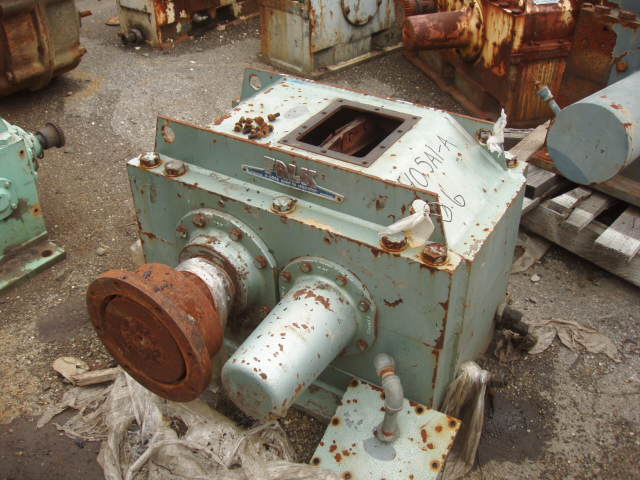

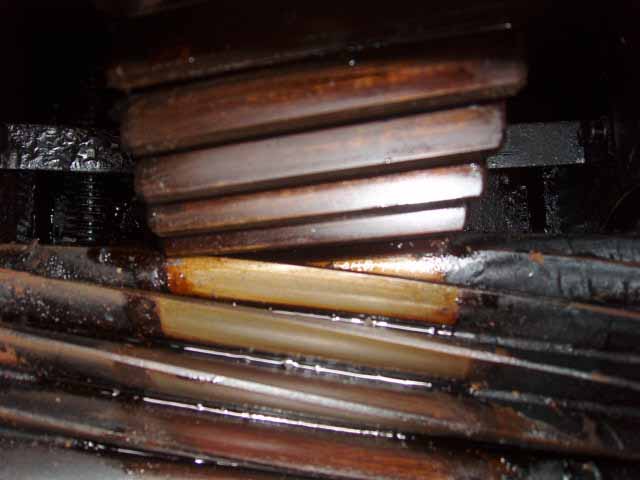

Click on images for larger view.
