Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

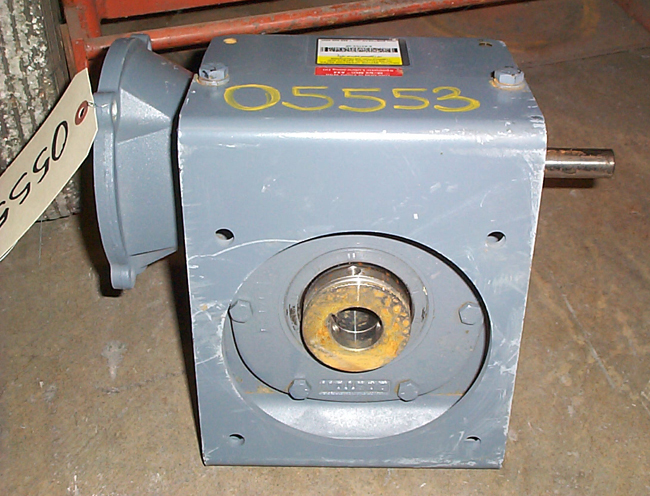

Manufacturer:      Boston Gear Our ID No.      005553
Model:      HF726R30PSB7HP19T Ratio:      30:1
MO# or S/N       Alt. S/N
IP Speed      1750 RPM HP rating       Cat. Rating
OP Speed:       SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      1300 Lb-Inches Shaft Diameters High Speed:  140TC, Hollow
Low Speed:  1.1875, Hollow
Weight      55 Lbs Approx. Assembly      Right Angle Worm, 140TC Input, 1 3/16 Flanged Hollow Output
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
30:1

58
1.5 HP
1170
30
1.2 HP
Notes:

Condition: NEW SURPLUS
