Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      BOSTON Our ID No.      005556
Model:      713-10 H Ratio:      10:1
MO# or S/N       Alt. S/N
IP Speed       HP rating      .75 HP Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      243 Lb-Inches Shaft Diameters High Speed:  .5000, Solid
Low Speed:  .625, Solid
Weight      12 Lbs Approx. Assembly      Right Angle Worm, Solid Input, Double Solid Output
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
10:1

175
.75 HP
1170
115
.51 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

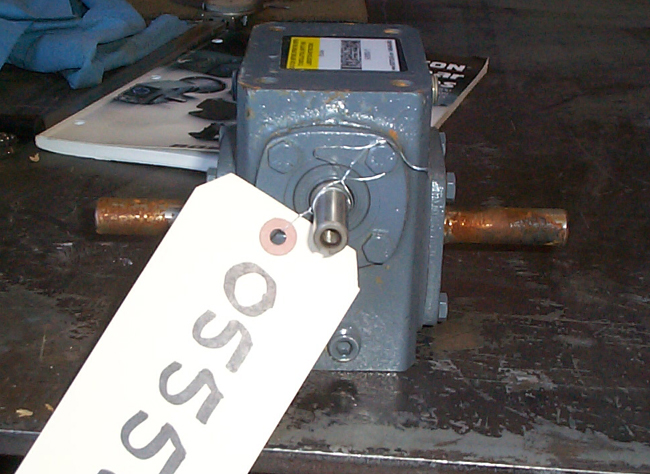

Click on images for larger view.
