Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005563
Model:      154WMB2A Ratio:      5:1
MO# or S/N      47010240697 Alt. S/N
IP Speed      1750 RPM HP rating      1.53 HP Cat. Rating      1.53 HP
OP Speed:      350 RPM SF / SC      1.0 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      243 Lb-Inches Shaft Diameters High Speed:  56C, Hollow
Low Speed:  .750, Solid
Weight      16 Lbs Approx. Assembly      Right Angle Worm
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
5:1

350
1.53 HP
1170
234
1.25 HP
870
174
1.04 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

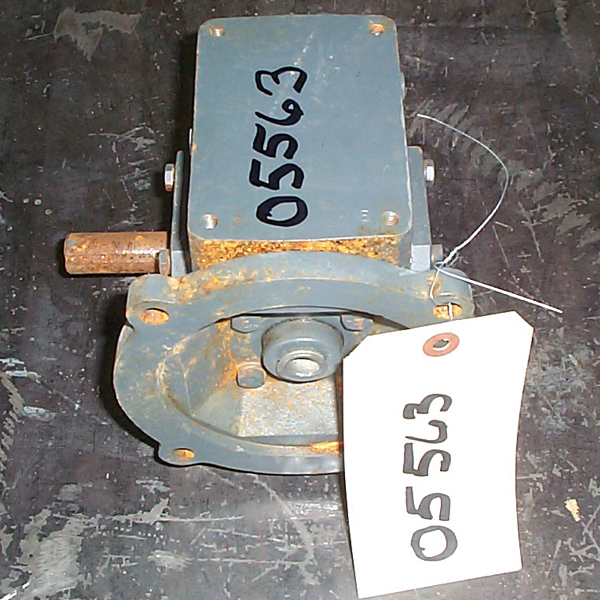

Click on images for larger view.
