Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005596
Model:      2050Y1B Ratio:      7.538:1
MO# or S/N      7-966181-01 Alt. S/N
IP Speed      1750 RPM HP rating      50 HP Cat. Rating
OP Speed:      232.16 RPM SF / SC      1.34 - SF
Date       Oil Capacity      1.25
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      20,300 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  2.750
Weight      450 Lbs Approx. Assembly      Assembly #19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
7.538:1

230
74.7 HP
1430
190
62.6 HP
1170
155
52.5 HP
870
115
40.3 HP
720
95
34.0 HP
580
77
27.9 HP
Notes:

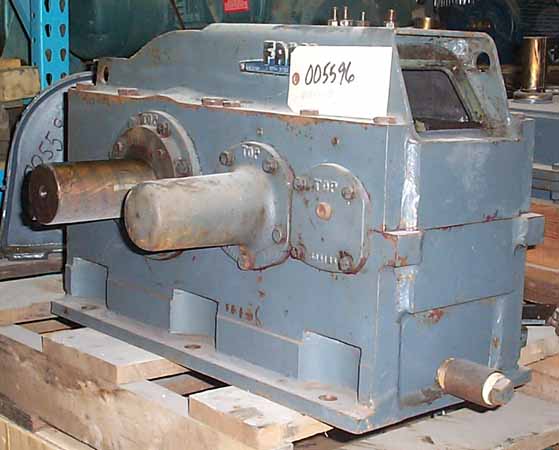

Condition: Unit appears to be rebuilt. Gearing in good condition (real light wear, see pictures)
