- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005612
Model:      2080Y2L Ratio:      38.82:1
MO# or S/N      8-866721 Alt. S/N
IP Speed      1750 RPM HP rating      25 HP Cat. Rating
OP Speed:      45 RPM SF / SC      2.42 - SF
Date      12/88 Oil Capacity      7.5
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      84,700 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  4.000
Weight      1090 Lbs Approx. Assembly      Assembly #19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
38.82:1

45
60.6 HP
1430
37
50.3 HP
1170
30
41.7 HP
870
22
31.6 HP
720
18
26.5 HP
580
15
21.6 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

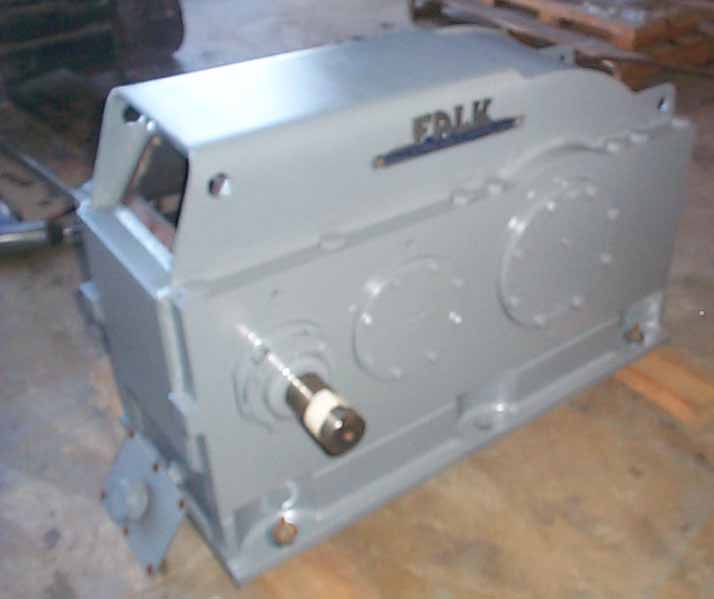

Click on images for larger view.
