Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

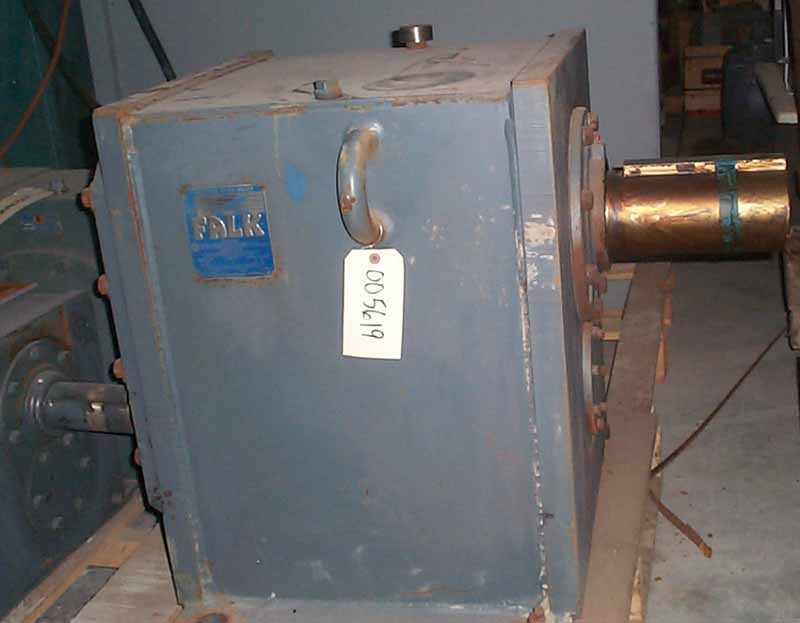

N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005619
Model:      110FZ3A Ratio:      57.38:1
MO# or S/N      8-032562 Alt. S/N
IP Speed      1750 RPM HP rating      30 HP Cat. Rating
OP Speed:      31 RPM SF / SC
Date       Oil Capacity      26
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      110,000 Lb-Inches Shaft Diameters High Speed:
Low Speed:  4.750
Weight      1560 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
57.38:1

30
53.2 HP
1430
25
44.0 HP
1170
20
36.4 HP
870
15
27.4 HP
720
12.5
22.9 HP
580
10
16.2 HP
Notes:

Condition: NEW SURPLUS
