Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005622
Model:      385A1-AS Ratio:      2.444:1
MO# or S/N      8-866760 Alt. S/N
IP Speed      1775 RPM HP rating      800 HP Cat. Rating
OP Speed:       SF / SC      1.813 - SF
Date      12/88 Oil Capacity      8
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      120,000 Lb-Inches Shaft Diameters High Speed:  3.500
Low Speed:  4.500
Weight      1340 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
2.444:1

700
1315 HP
1430
575
1142 HP
1170
470
992 HP
870
350
806 HP
720
290
706 HP
580
235
607 HP
Notes:

Condition: NEW SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

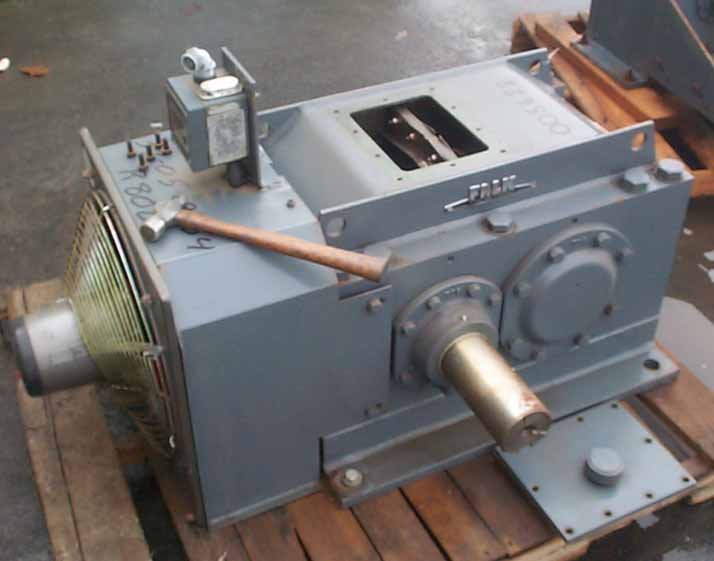

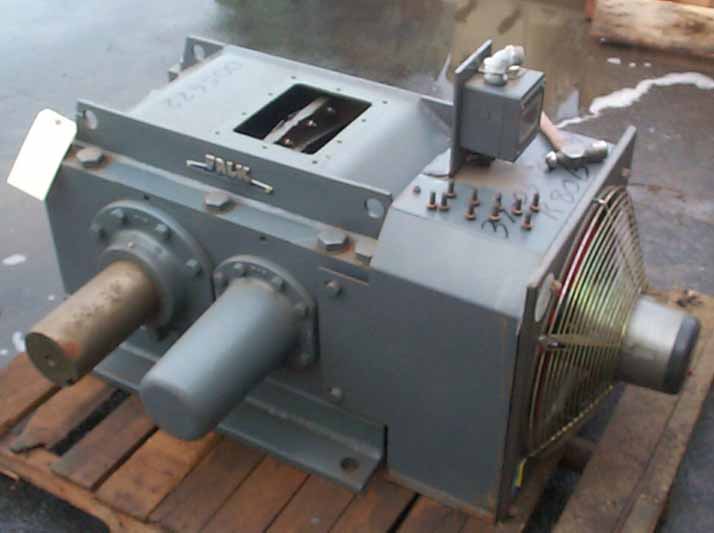

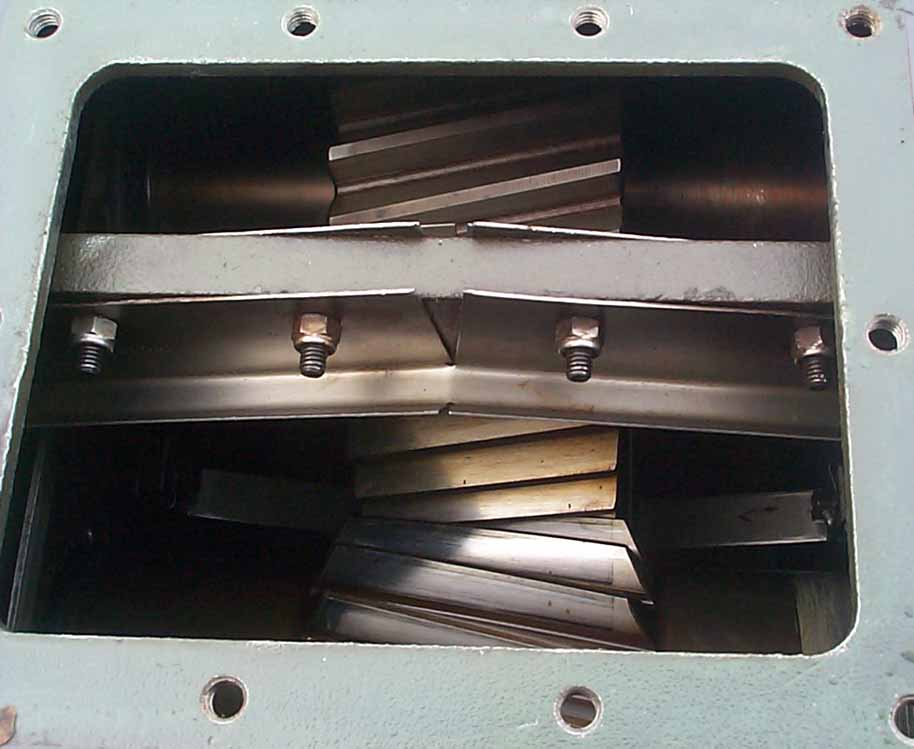

Click on images for larger view.
