Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005706
Model:      2100Y1-LS Ratio:      3.536:1
MO# or S/N      8-866163 Alt. S/N
IP Speed      1775 RPM HP rating      700 HP Cat. Rating
OP Speed:      502 RPM SF / SC      1.54 - SF
Date      9/88 Oil Capacity      16 US Gals
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      136,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  5.000
Weight      2,000 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
3.536:1

520 RPM
1128 HP
1430 RPM
420 RPM
980 HP
1170 RPM
350 RPM
851 HP
870 RPM
260 RPM
685 HP
720 RPM
210 RPM
581 HP
580 RPM
175 RPM
469 HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

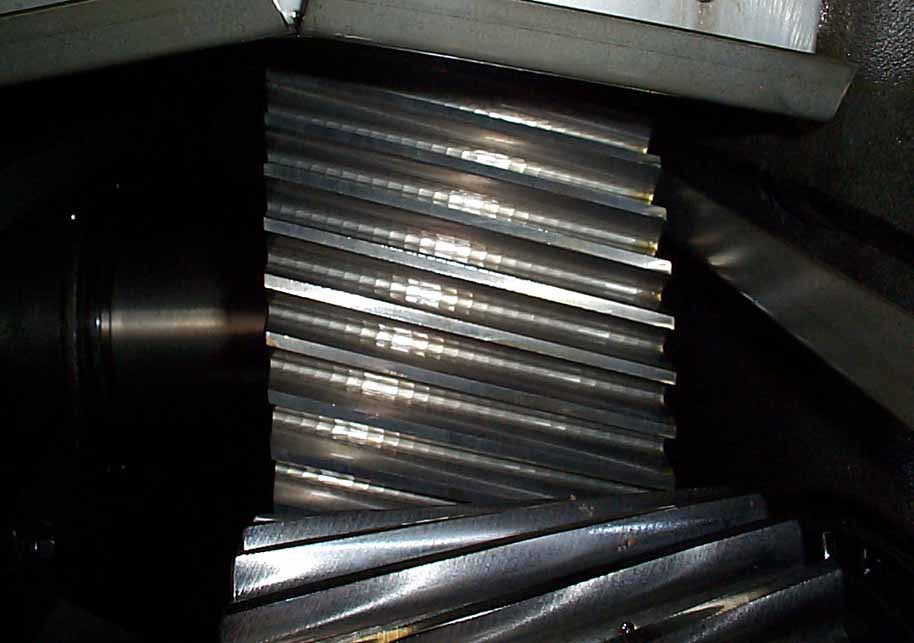

Click on images for larger view.
