Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005709
Model:      2120Y1-S Ratio:      3.184:1
MO# or S/N       6-660754-01 Alt. S/N
IP Speed      1775 RPM HP rating      643 HP Cat. Rating
OP Speed:      557.5 RPM SF / SC      1.52 - SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      217,000 Lb-Inches Shaft Diameters High Speed:  4.000
Low Speed:  6.000
Weight      3300 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
3.184:1

550
977 HP
1170
367
653 HP
870
273
486 HP
Notes:

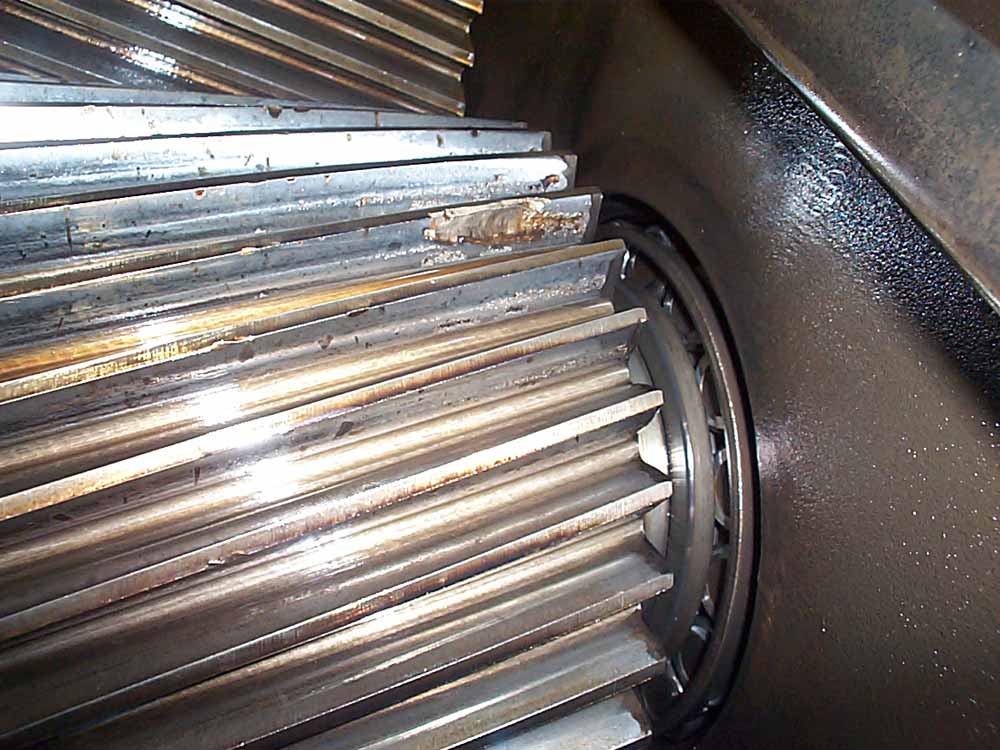

Condition: Broken tooth on pinion



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
