Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005725
Model:      2125YT3-LD Ratio:      165.7:1
MO# or S/N      8-666440 Alt. S/N
IP Speed      1750 RPM HP rating      30 HP Cat. Rating
OP Speed:      10.6 RPM SF / SC      2.07 - SF
Date      1/87 Oil Capacity      29
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      371,000 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  6.000
Weight      3550 Lbs Approx. Assembly      Parallel
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
165.7:1

11.0 RPM
62.2 HP
1430 RPM
9.0 RPM
50.8 HP
1170 RPM
7.5 RPM
41.6 HP
870 RPM
5.5 RPM
30.9 HP
720 RPM
4.5 RPM
25.6 HP
580 RPM
3.8 RPM
20.6 HP
Notes:
Condition:


UNUSED

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.

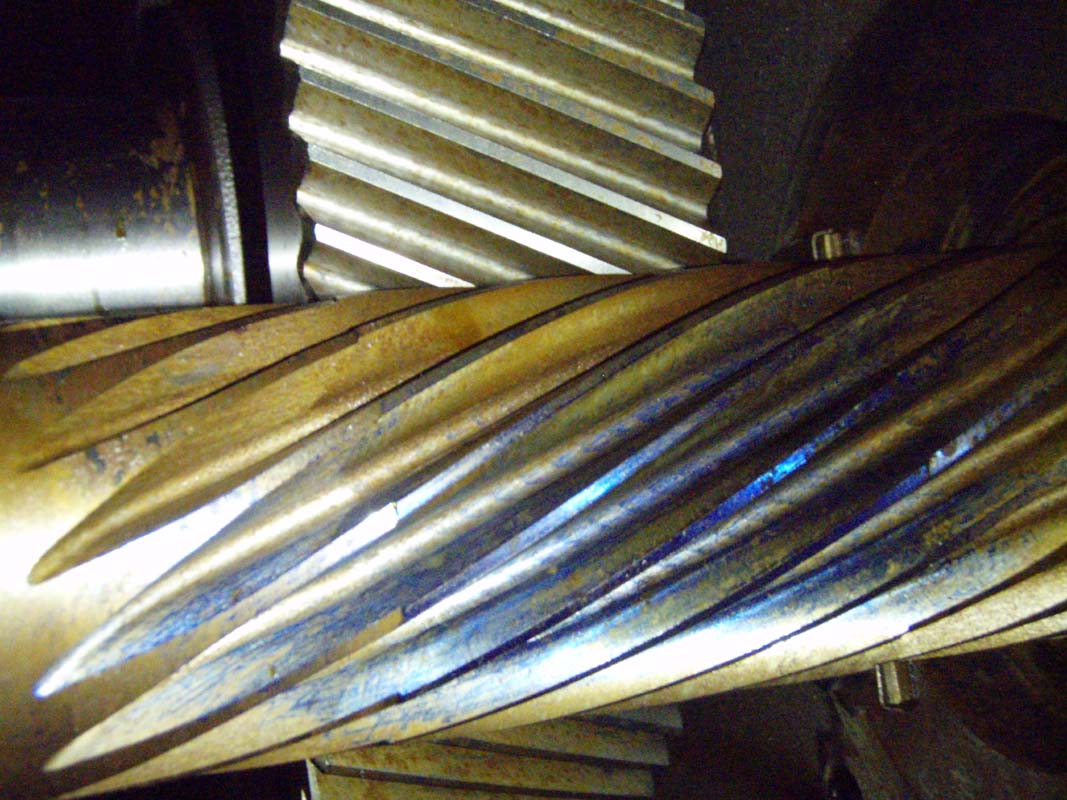

High Speed Gearing


Intermediate Gearing



Low Speed Pinion



Low Speed Gear
