Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

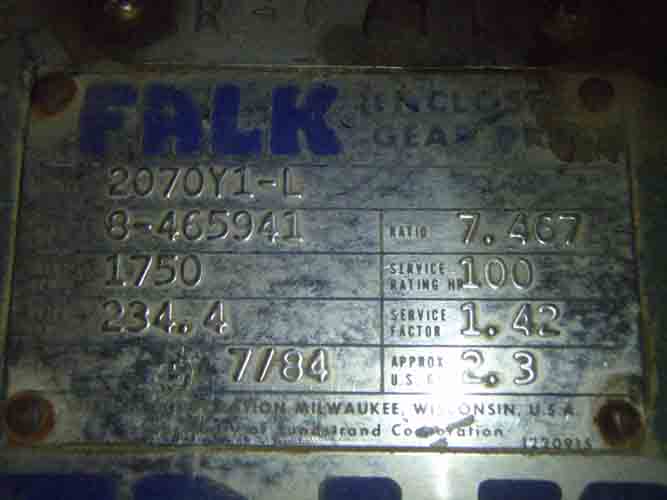

N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005729
Model:      2070Y1-L Ratio:      7.467:1
MO# or S/N      8-465941 Alt. S/N
IP Speed      1750 RPM HP rating      100 HP Cat. Rating
OP Speed:      234.4 RPM SF / SC      1.42 - SF
Date      7/84 Oil Capacity      2.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      38,200 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  3.500
Weight      850 Lbs Approx. Assembly      Assembly 19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
7.467:1

230 RPM
142 HP
1430 RPM
190 RPM
119 HP
1170 RPM
155 RPM
100 HP
870 RPM
115 RPM
77.2 HP
720 RPM
95 RPM
65.2 HP
580 RPM
77 RPM
53.7 HP
Notes:
Condition: NEW SURPLUS
