Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

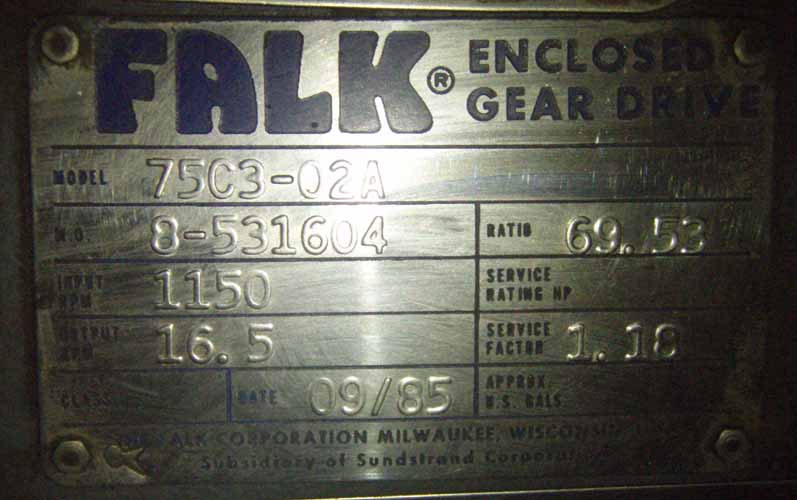

N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005731
Model:      75C3-02A Ratio:      69.53:1
MO# or S/N      8-531604 Alt. S/N
IP Speed      1150 RPM HP rating       Cat. Rating
OP Speed:      16.5 RPM SF / SC      1.18 - SF
Date      9/85 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      69,000 Lb-Inches Shaft Diameters High Speed:  2.125
Low Speed:  4.000
Weight       Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
69.53:1

25 RPM
26.3 HP
1430 RPM
20 RPM
21.8 HP
1170 RPM
16.5 RPM
17.7 HP
870 RPM
12.5 RPM
13.4 HP
720 RPM
10.0 RPM
11.0 HP
580 RPM
-
-
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

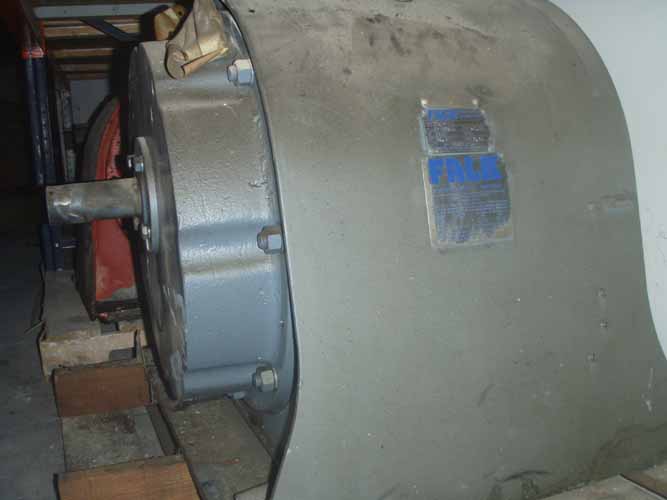

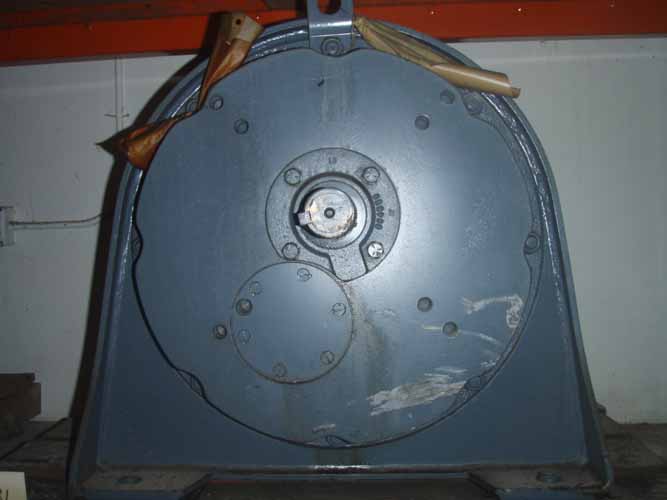

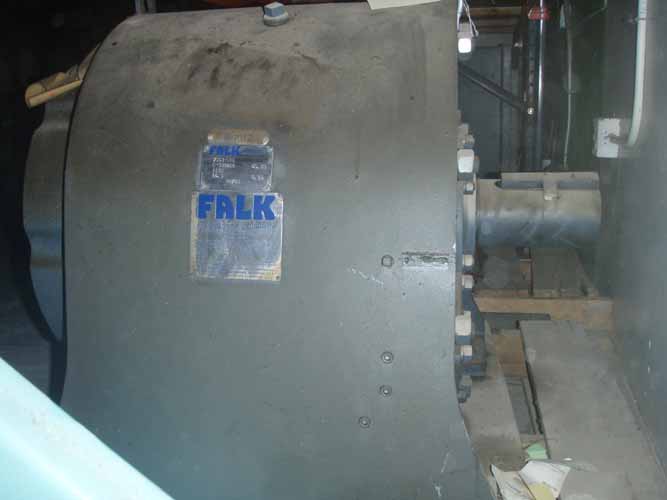

Click on images for larger view.
