Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005735
Model:      8C3-02A4 Ratio:      38.45:1
MO# or S/N      D7-440915-01 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date      3/75 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      83,200 Lb-Inches Shaft Diameters High Speed:  2.125
Low Speed:  4.500
Weight       Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
38.45:1

45 RPM
60 HP
1430 RPM
37 RPM
50 HP
1170 RPM
30 RPM
41 HP
870 RPM
22 RPM
31 HP
720 RPM
18 RPM
26 HP
580 RPM
-
-
Notes:
Condition:
USED, Good


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

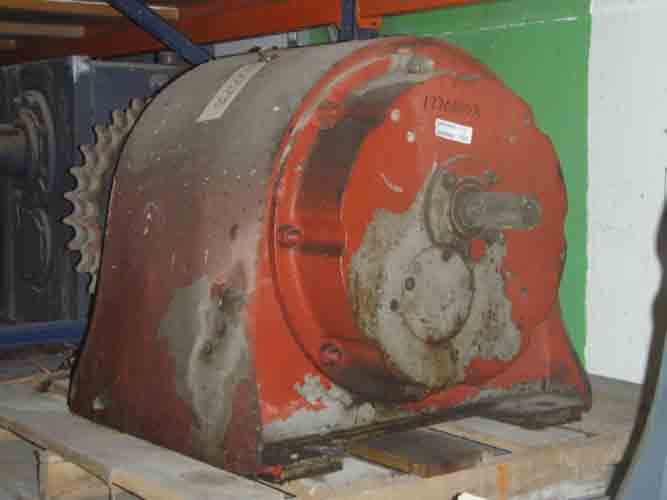

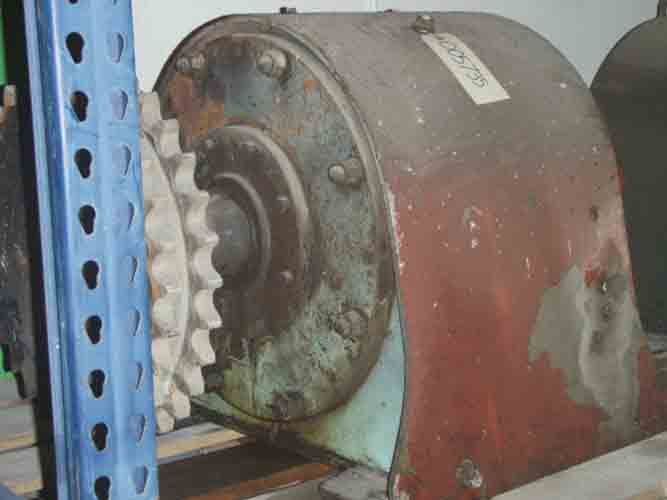

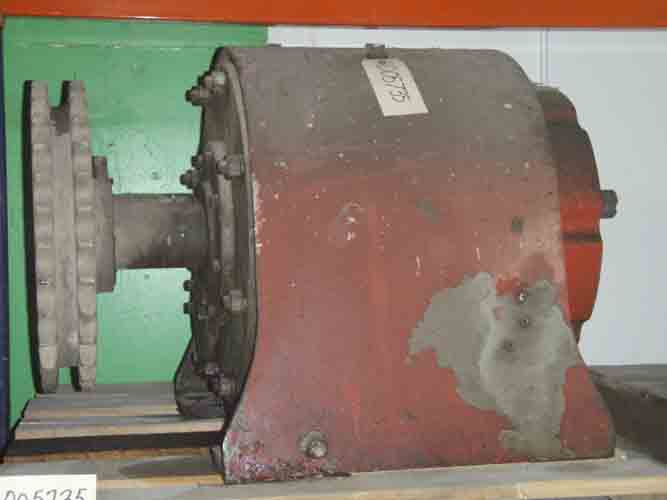

Click on images for larger view.
