Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Falk Our ID No.      005736
Model:      52-1050FZB4A Ratio:      59.80:1
MO# or S/N      8-431059 Alt. S/N
IP Speed      1750 RPM HP rating      5 HP Cat. Rating
OP Speed:      30 RPM SF / SC      Class II
Date      4/84 Oil Capacity      4.8
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      17,300 Lb-inches Shaft Diameters High Speed:  1.6250
Low Speed:  2.7500
Weight      650 Lbs Approx. Assembly      Right Angle
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
59.80:1

30 RPM
8.03 HP
1430 RPM
25 RPM
6.90 HP
1170 RPM
20 RPM
5.94 HP
870 RPM
15 RPM
4.65 HP
720 RPM
12.5 RPM
3.86 HP
580 RPM
10.0 RPM
3.12 HP
Notes:

Condition: New Surplus





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

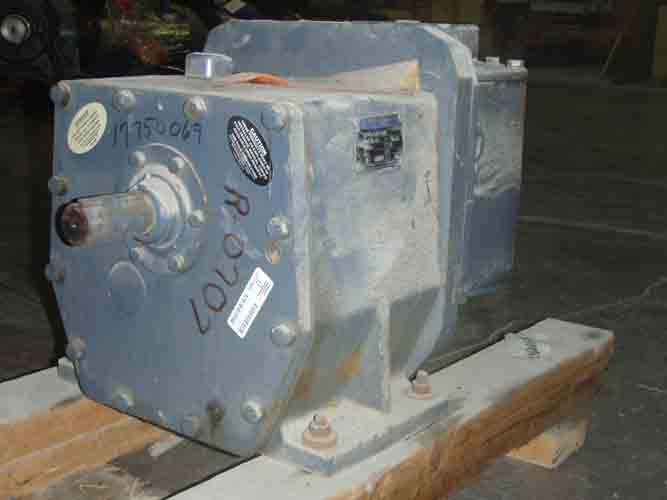

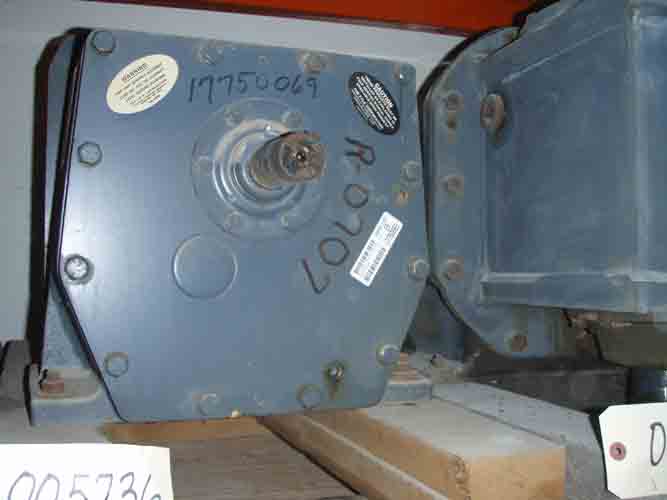

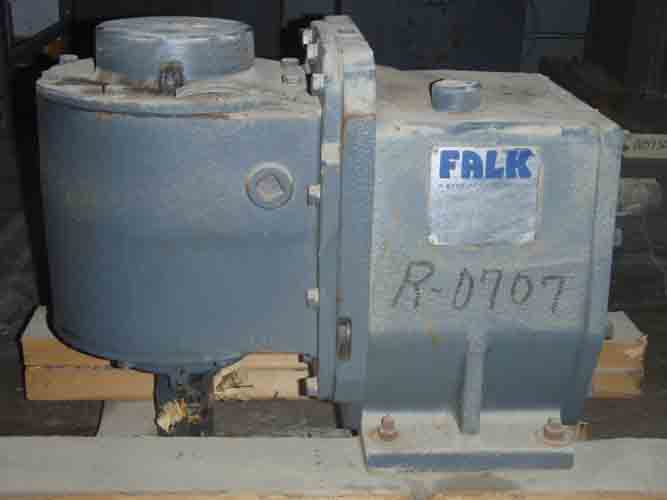

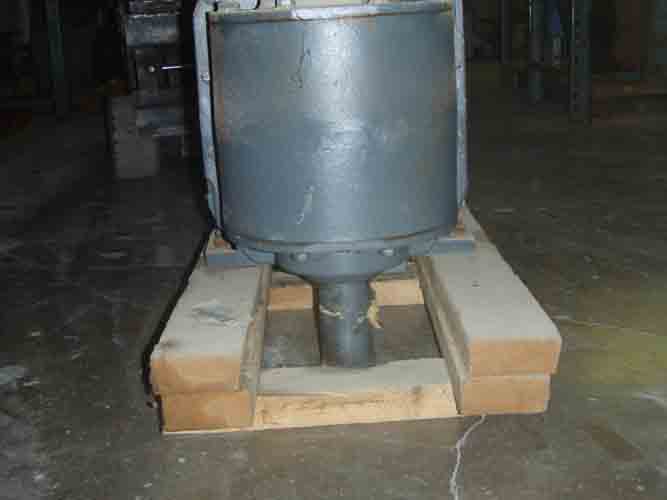

Click on images for larger view.
