N A M E P L A T E       D A T A

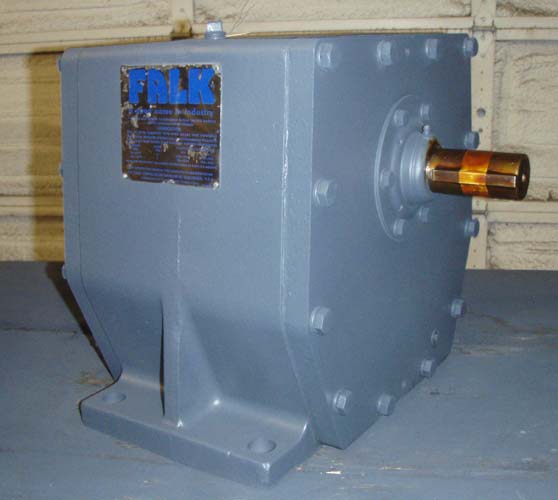

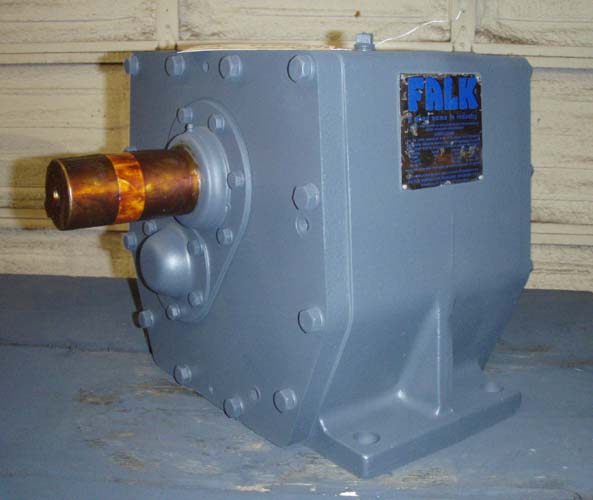

Manufacturer:      Falk Enclosed Gear Drive Our ID No.       005744
Model:      1050FZ2A Ratio:      20.52
MO# or S/N      8-6J1949-9 Alt. S/N
IP Speed      1750 HP rating       Cat. Rating
OP Speed:      84 SF / SC      Class 2
Date       Oil Capacity      3.2
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      14,300 Lb-Inches Shaft Diameters High Speed:  1.625
Low Speed:  2.500
Weight      400 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
20.52

84 RPM
19.3 HP
1430 RPM
68 RPM
15.9 HP
1170 RPM
56 RPM
13.1 HP
870 RPM
42 RPM
9.79 HP
720 RPM
34 RPM
8.14 HP
580 RPM
28 RPM
6.59 HP
Notes:
Condition:
