Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME

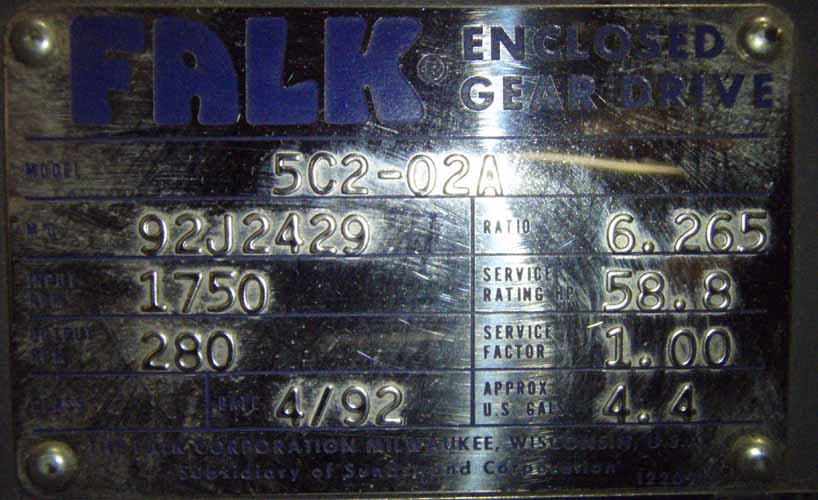

N A M E P L A T E       D A T A
Manufacturer:      Falk Enclosed Gear Drive Our ID No.      005745
Model:      5C2-02A Ratio:      6.265
MO# or S/N      92J2429 Alt. S/N
IP Speed      1750 HP rating      58.8 Cat. Rating
OP Speed:      280 SF / SC      SF 1.0
Date      4-92 Oil Capacity      4.4
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      13,000 Lb-Inches Shaft Diameters High Speed:  1.875
Low Speed:  2.875
Weight      520 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
6.265

280 RPM
58.8 HP
1430 RPM
230 RPM
49.5 HP
1170 RPM
190 RPM
40.5 HP
870 RPM
140 RPM
30 HP
720 RPM
115 RPM
25.1 HP
580 RPM
RPM
HP
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

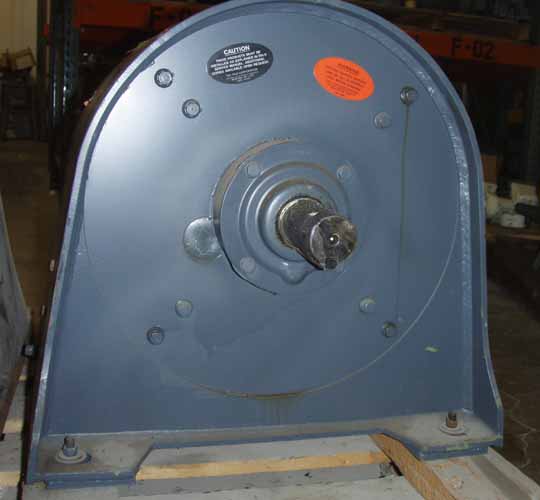

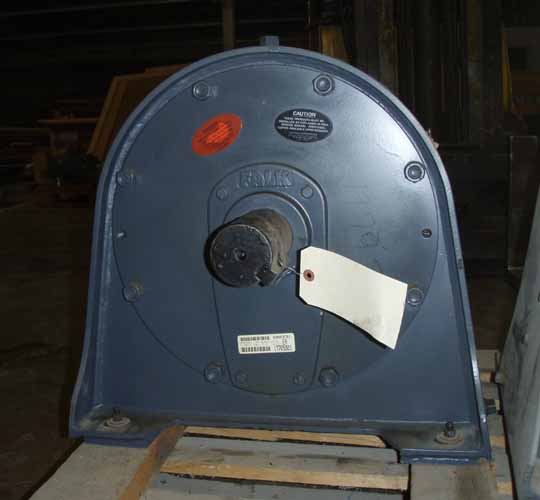

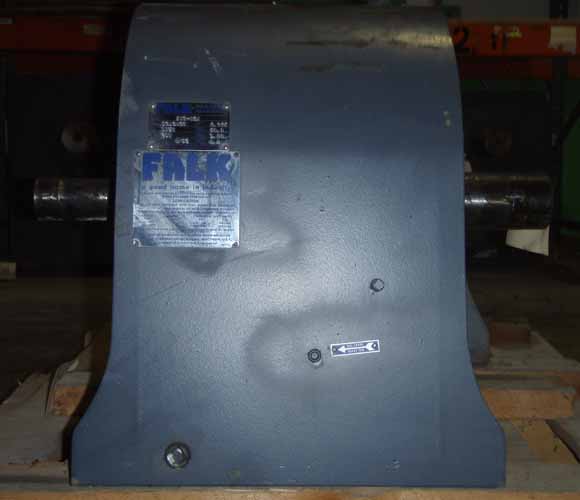

Click on images for larger view.
