Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK REXNORD Our ID No.      005746
Model:      2050Y1LD Ratio:      2.759
MO# or S/N      8-765815 Alt. S/N
IP Speed      2300/1750 HP rating      40 HP Cat. Rating      279 HP @ 1750 RPM
OP Speed:      833/630 SF / SC      6.58
Date      5/87 Oil Capacity      3.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      27,700 Lb-Inches Shaft Diameters High Speed:     1.750
Low Speed:     2.750
Weight       500 Lbs Approx. Assembly       ASSEMBLY # 1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
2.759:1

640 RPM
279 HP
116 HP
1430 RPM
520 RPM
232 HP
127 HP
1170 RPM
420 RPM
193 HP
160 HP
870 RPM
320 RPM
147 HP
136 HP
720 RPM
260 RPM
123 HP
Exceeds mechanical
580 RPM
210 RPM
100 HP
Exceeds mechanical
Notes:
Condition: Like new



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

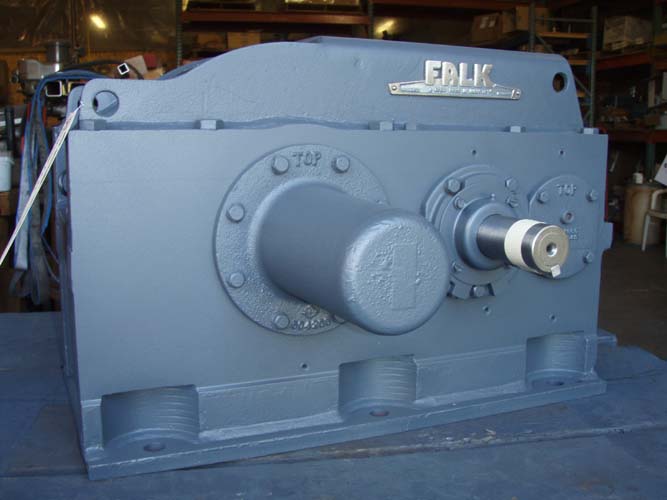

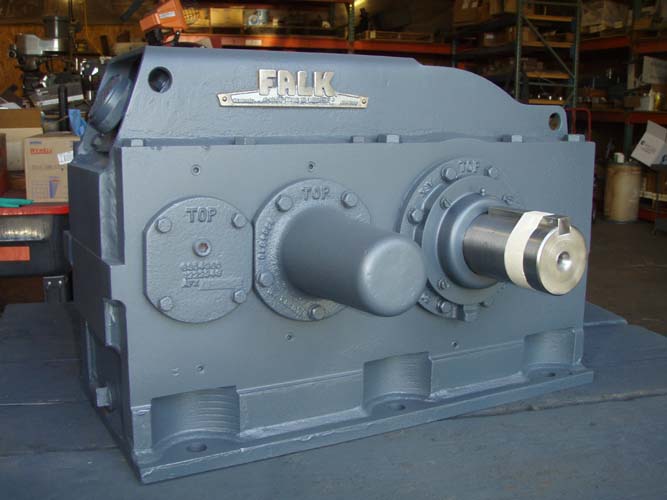

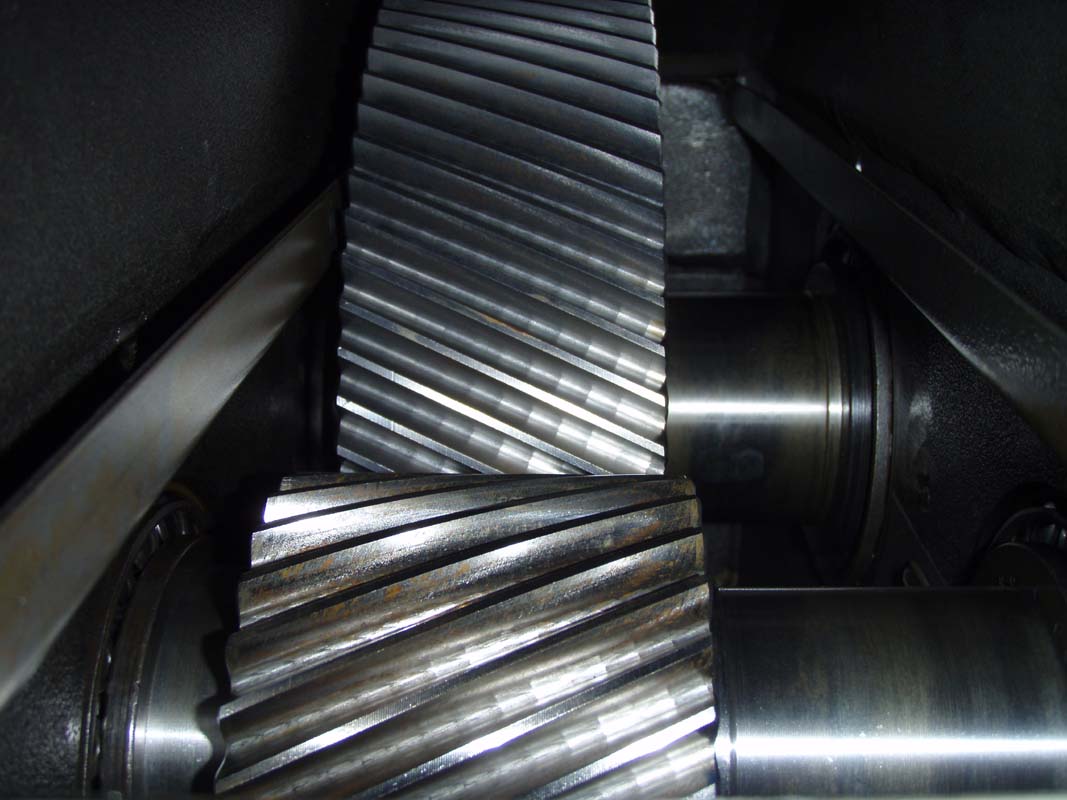

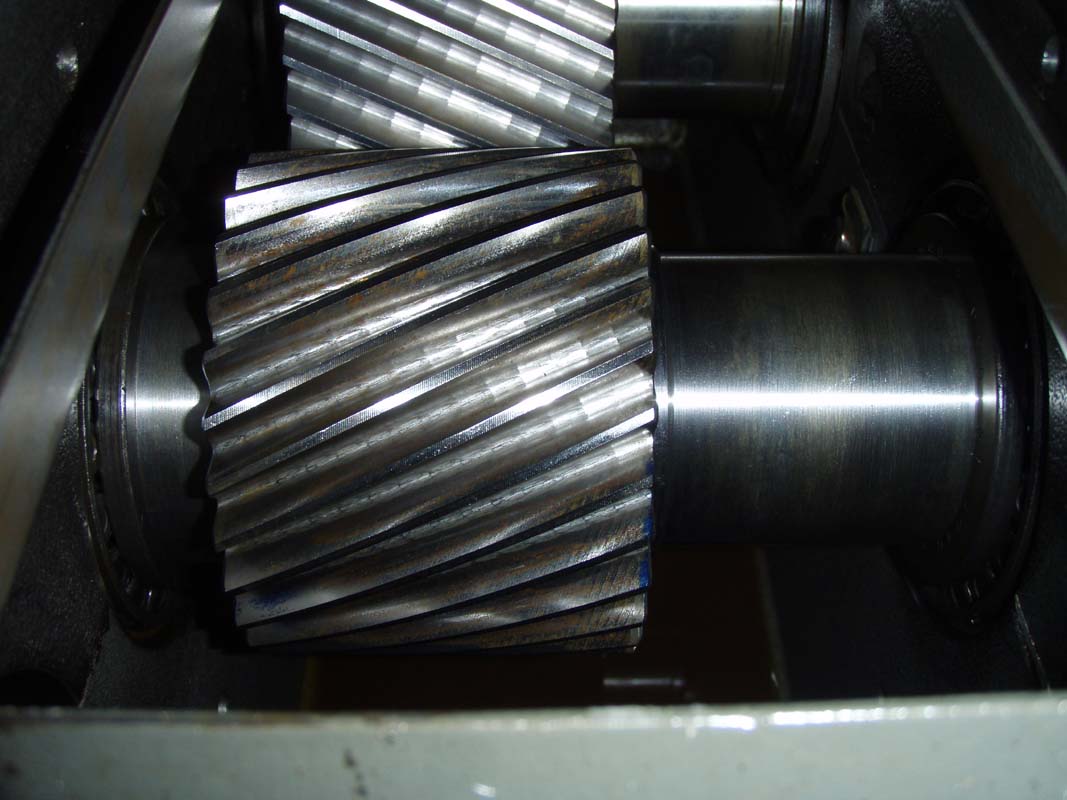

Click on images for larger view.
