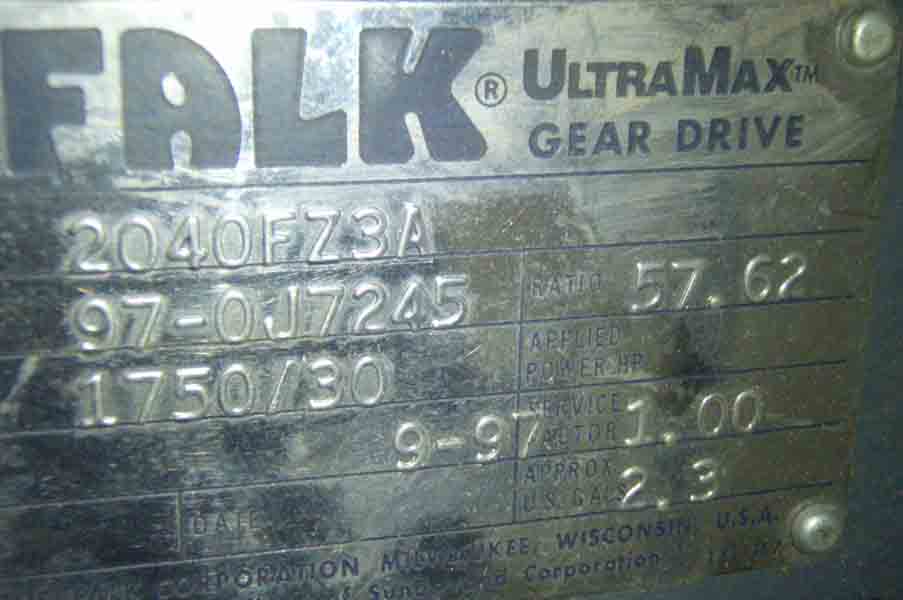

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005767
Model:      2040FC3A, 2040FZ3A, 2040F 3A Ratio:      57.62:1
MO# or S/N       970J7245 Alt. S/N
IP Speed      1750 RPM HP rating       Cat. Rating
OP Speed:      30 RPM SF / SC
Date      9-97 Oil Capacity      2.3 US GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      14,300 Lb-Inches Shaft Diameters High Speed:  1.375
Low Speed:  2.000
Weight       240 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
57.62:1

30 RPM
6.91 HP
1430 RPM
25 RPM
5.65 HP
1170 RPM
20 RPM
4.62 HP
870 RPM
15 RPM
3.44 HP
720 RPM
12.5 RPM
2.85 HP
580 RPM
10.0 RPM
2.29 HP
Notes:
Condition: UNUSED
