Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005768
Model:      2040F 2A Ratio:      4.929
MO# or S/N      00-0X0020 Alt. S/N
IP Speed      1750 RPM HP rating      57.6 HP Cat. Rating
OP Speed:      350 RPM SF / SC      1.0 SF
Date      2-9-2000 Oil Capacity      2.3 US GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      10,200 Lb-Inches Shaft Diameters High Speed:  1.375
Low Speed:  2.000
Weight       240 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
4.929:1

350 RPM
57.6 HP
40.4 HP
1430 RPM
280 RPM
50.0 HP
42.0 HP
1170 RPM
230 RPM
43.0 HP
42.5 HP
870 RPM
175 RPM
32.6 HP
Exceeds Mechanical HP
720 RPM
140 RPM
27.2 HP
Exceeds Mechanical HP
580 RPM
115 RPM
22.1 HP
Exceeds Mechanical HP
Notes:
Condition: UNUSED



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

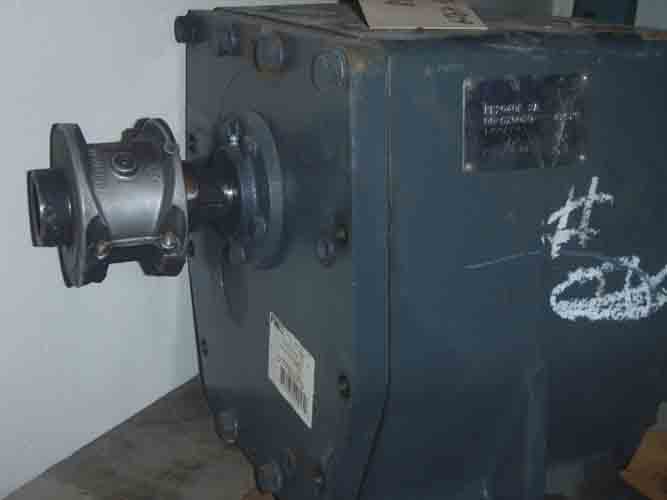

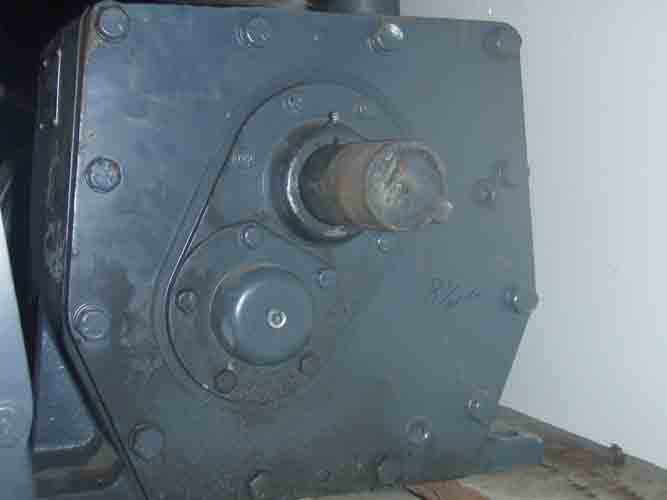

Click on images for larger view.
