- Speed Reducer Data Sheet -

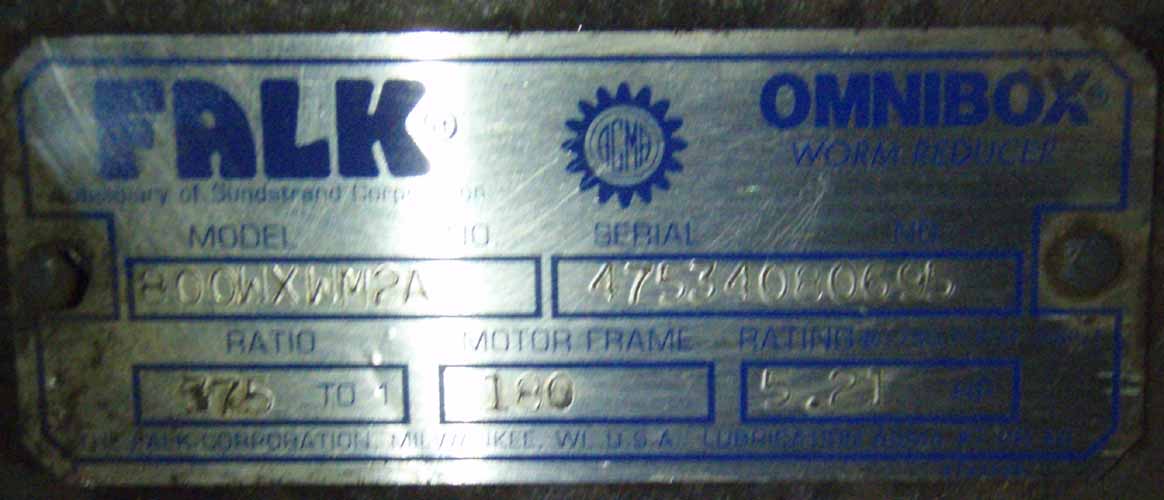

N A M E P L A T E       D A T A
Manufacturer:      FALK     OMNIBOX SERIES Our ID No.      005819
Model No:      800WXWM2A Ratio:      375 (15 x 24.5)
S/N      47534080695 Center Distance      P=4.25/S=8.00
IP Speed      1750 HP rating      5.21
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      45,400 Lb-Inches Shaft Diameters High Speed:  180TC
Low Speed:  3.000
Weight      900 Lbs Approx. Assembly      WE CAN CHANGE ASSEMBLIES FOR YOU
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
375 :1

4.67 RPM
5.21 HP
1170 RPM
3.12 RPM
3.67 HP
870 RPM
2.32 RPM
2.87 HP
Notes:
   NEW SURPLUS
 We can change assemblies for you
 800WXWM1A
 800WXWM2A
 800WXWM3A
 800WXWM4A
 800WBWM1A
 800WBWM2A
 800WBWM3A
 800WBWM4A
 800WOWM1A
 800WOWM2A
 800WOWM3A
 800WOWM4A
 800WUWM1A
 800WUWM2A
 800WUWM3A
 800WUWM4A
