Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005827
Model:      60FC2M Ratio:      11.07:1
MO# or S/N      8-131220-02 Alt. S/N
IP Speed      1750 RPM HP rating      20 HP Cat. Rating
OP Speed:      155 RPM SF / SC      1.82 - SF
Date      02-81 Oil Capacity      3.2
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      24,300 Lb-Inches Shaft Diameters High Speed:  1.875
Low Speed:  2.750
Weight      380 Lbs Approx Assembly      Concentric (Inline)
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750
11.07:1

155
61.0 HP
1430
125
52.4 HP
1170
100
45.1 HP
870
77
36.0 HP
720
62
30.0 HP
580
50
24.3 HP
Notes:

Condition: USED SURPLUS





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

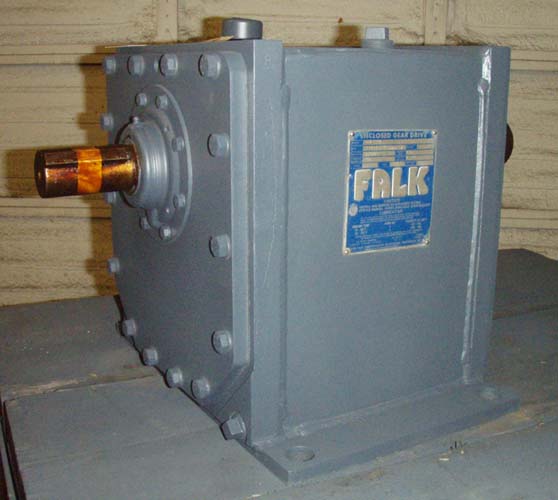

Click on images for larger view.
