Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

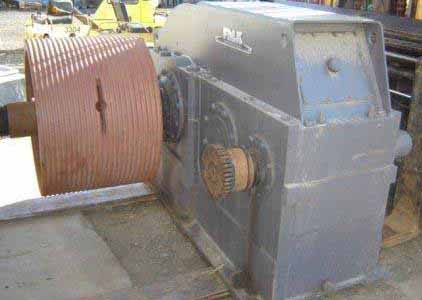

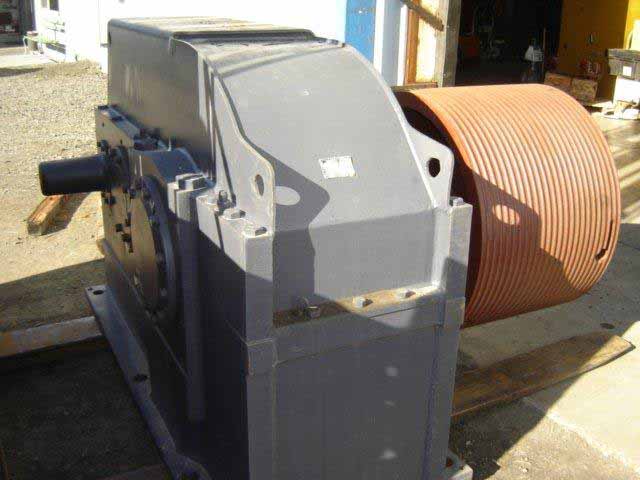

Manufacturer:      FALK SAWMILL CARRIAGE DRIVE Our ID No.      005862
Model:      2150Y2S Ratio:      9.188:1
MO# or S/N      8-765901 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      616,000 Lb-Inches Shaft Diameters High Speed:  3.500

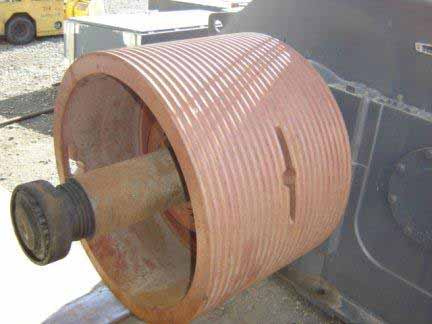

Low Speed:  SPECIAL
Weight      9,500 Lbs Approx. Assembly      ASSY 20
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
9.188:1

190 RPM
1861 HP
1430 RPM
155 RPM
1556 HP
1170 RPM
125 RPM
1301 HP
870 RPM
95 RPM
996 HP
720 RPM
77 RPM
839 HP
580 RPM
62 RPM
689 HP
Notes:
Condition: USED - EXCELLENT!!

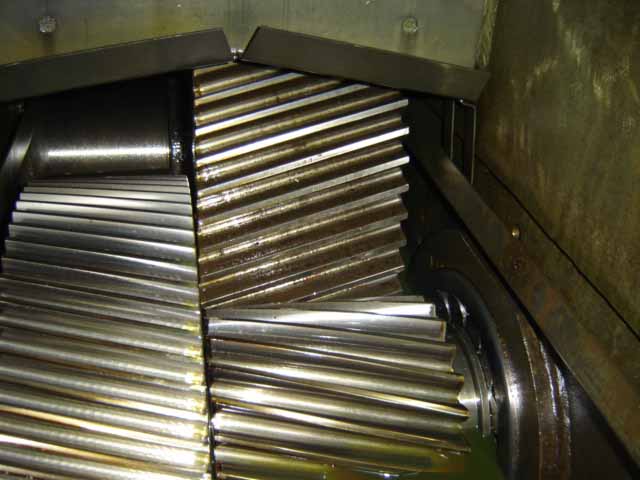

High Speed Gearing: 45 / 82 teeth

Low Speed Gearing: 23 / 116 teeth


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
