- Speed Reducer Data Sheet -

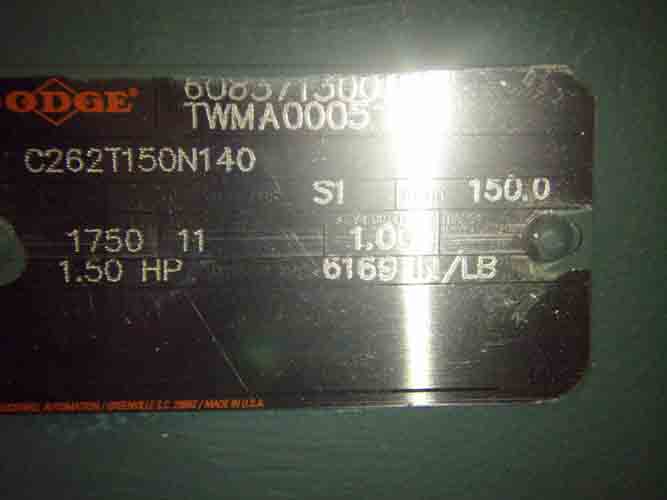

N A M E P L A T E       D A T A
Manufacturer:      DODGE COMBINATION TIGEAR      Our ID No.      005945
Model No:      C262T150N140 S1
     140C262T150S1A 		Ratio:      150
S/N      6083712001BET
     WMA0005 		Center Distance      2.62
IP Speed      1750 HP rating      1.50
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      6,169 Lb-Inches Shaft Diameters High Speed:  140TC
Low Speed:  Twin Tapered Bushing System 1-15/16 Maximum Shaft Diameter
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
150:1

11.51 RPM
1.50 HP
1170 RPM
7.70 RPM
1.07 HP
870 RPM
5.72 RPM
0.83 HP
Notes:
   NEW SURPLUS
