- Speed Reducer Data Sheet -

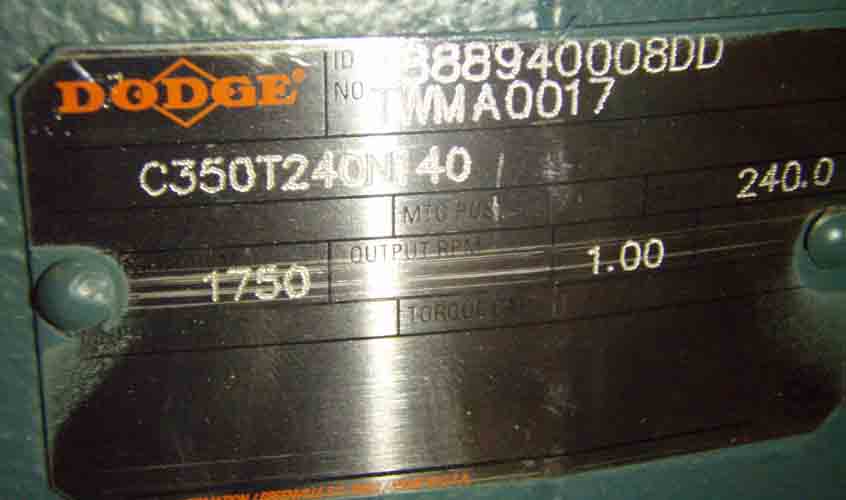

N A M E P L A T E       D A T A
Manufacturer:      DODGE COMBINATION TIGEAR      Our ID No.      005946
Model No:      C350T240N140 S1
     140C350T240S1A 		Ratio:      240
S/N      5888940008DDT
     WMA0017 		Center Distance      3.50
IP Speed      1750 HP rating      1.85
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      10,340 Lb-Inches Shaft Diameters High Speed:  140TC
Low Speed:  Twin Tapered Bushing System
2-3/16 Maximum Shaft Diameter
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
240:1

7.19 RPM
1.85 HP
1170 RPM
4.81 RPM
1.57 HP
870 RPM
3.58 RPM
1.28 HP
Notes:
   NEW SURPLUS
