- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      DODGE COMBINATION TIGEAR      Our ID No.      005947
Model No:      C350T150N140 S1
     140C350T150S1A 		Ratio:      150
S/N      5888940007DDT
     WMA0015 		Center Distance      3.50
IP Speed      1750 HP rating      3.08
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      12,891 Lb-Inches Shaft Diameters High Speed:  140TC
Low Speed:  Twin Tapered Bushing System
2-3/16 Maximum Shaft Diameter
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
150:1

11.51 RPM
3.08 HP
1170 RPM
7.70 RPM
2.15 HP
870 RPM
5.72 RPM
1.65 HP
Notes:
   NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

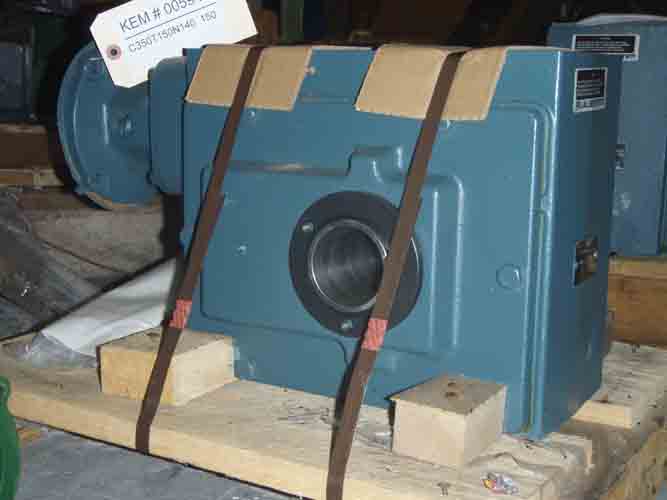

Click on images for larger view.
