Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

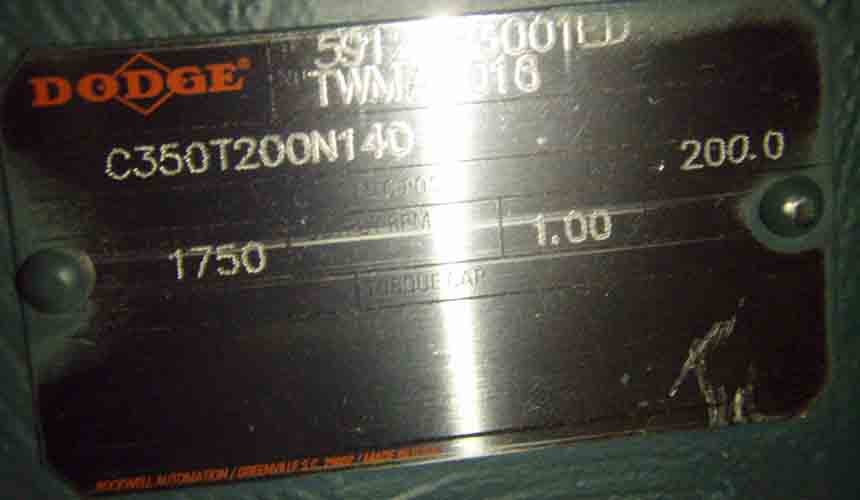

N A M E P L A T E       D A T A
Manufacturer:      DODGE COMBINATION TIGEAR      Our ID No.      005948
Model No:      C350T200N140 S1
     140C350T200S1A 		Ratio:      200
S/N      5912983001EDT
     WMA0016 		Center Distance      3.50
IP Speed      1750 HP rating      2.55
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      13,069 Lb-Inches Shaft Diameters High Speed:  140TC
Low Speed:  Twin Tapered Bushing System
2-3/16 Maximum Shaft Diameter
Weight       Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
200:1

8.63 RPM
2.55 HP
1170 RPM
5.77 RPM
1.77 HP
870 RPM
4.29 RPM
1.31 HP
Notes:
   NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
