- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A

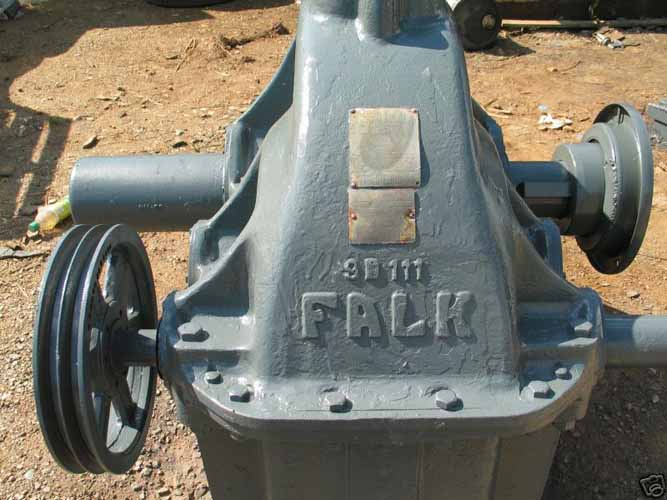

Manufacturer:      FALK Our ID No.      005950
Model:      9GDA Ratio:      27.09:1
MO# or S/N      6020-0155 Alt. S/N
IP Speed      1023 RPM HP rating      50 HP Cat. Rating
OP Speed:      37 RPM SF / SC      1.36 SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       105,000 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  5.000
Weight       2,800 Lbs Approx. Assembly       Assembly # 1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
27.09:1

65 RPM
107 HP
1170 RPM
43 RPM
76 HP
870 RPM
32 RPM
59 HP
720 RPM
26 RPM
50 HP
580 RPM
21 RPM
41 HP
Notes:
Condition:
Used, Good
