Manufacturer: | FALK | Our ID No. | 005960 | |||||||||||||||||||||||||
Model: | 1110YF1S | Ratio: | 4.741:1 | |||||||||||||||||||||||||
MO# or S/N | 8-066375-01 | Alt. S/N | ||||||||||||||||||||||||||
IP Speed | 1775 RPM | HP rating | 600 HP | Cat. Rating | ||||||||||||||||||||||||
OP Speed: | 374.4 RPM | SF / SC | 1.53 | |||||||||||||||||||||||||
Date | Oil Capacity | 18 Gallons | ||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Torque Rating | 154,000 Lb-Inches | Shaft Diameters |
High Speed:
3.250 Low Speed: 5.500 |
|||||||||||||||||||||||||
Weight | 3,000 Lbs Approx. | Assembly | Assembly # 19 | |||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Notes: |
Condition: |
|||||||||||||||||||||||||||
|

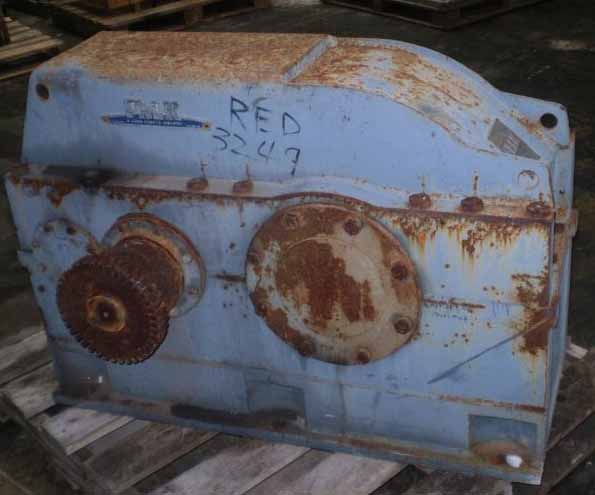

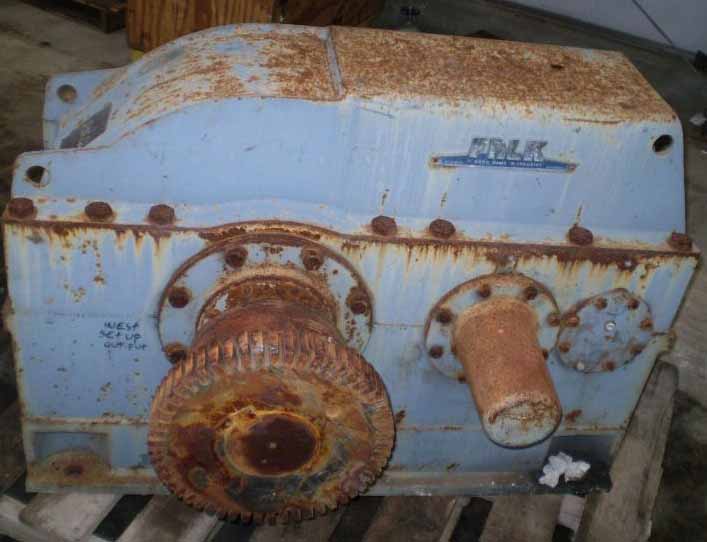

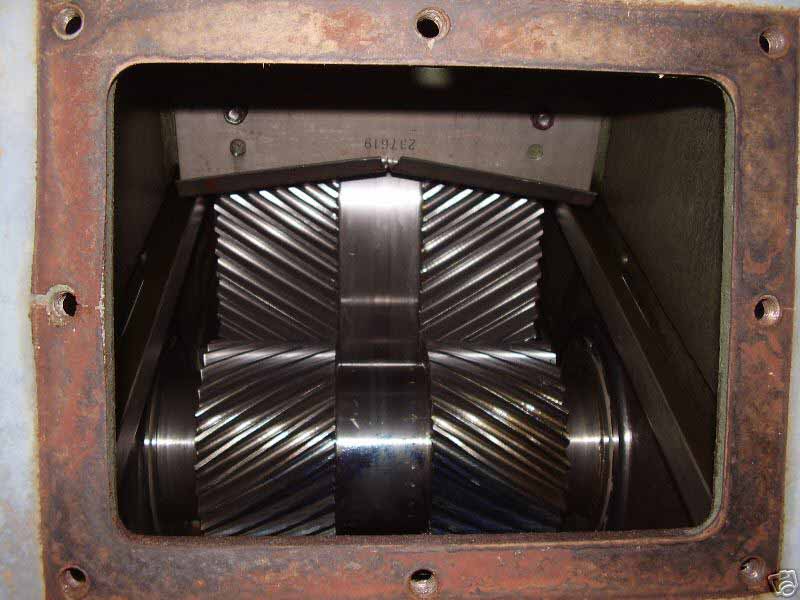

Click on images for larger view. |
