- Speed Reducer Data Sheet -
HOME

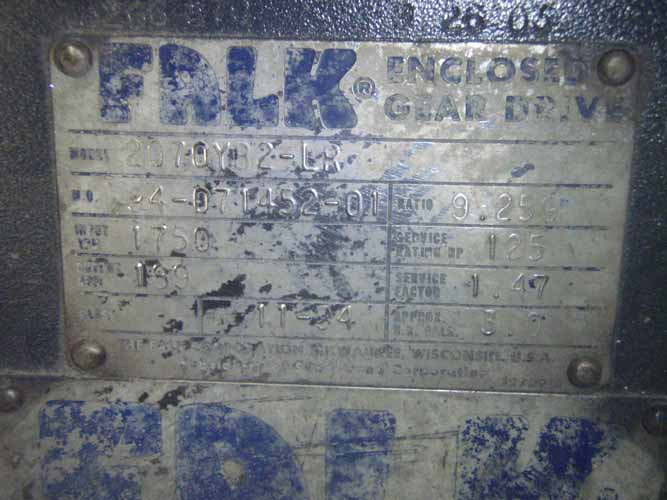

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005974
Model:      2070YB2-LR Ratio:      9.259
MO# or S/N      94-071452-01 Alt. S/N
IP Speed      1750 HP rating      125 Cat. Rating
OP Speed:      189 SF / SC      1.47 SF
Date      11-94 Oil Capacity      3.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      61,300 Lb-Inches Shaft Diameters High Speed:  2.000
Low Speed:  3.500
Weight      850 Lbs Approx. Assembly      45
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
9.259

190 RPM
184 HP
1430 RPM
155 RPM
153 HP
1170 RPM
125 RPM
126 HP
870 RPM
95 RPM
95.4 HP
720 RPM
77 RPM
79.7 HP
580 RPM
62 RPM
64.8 HP
Notes:

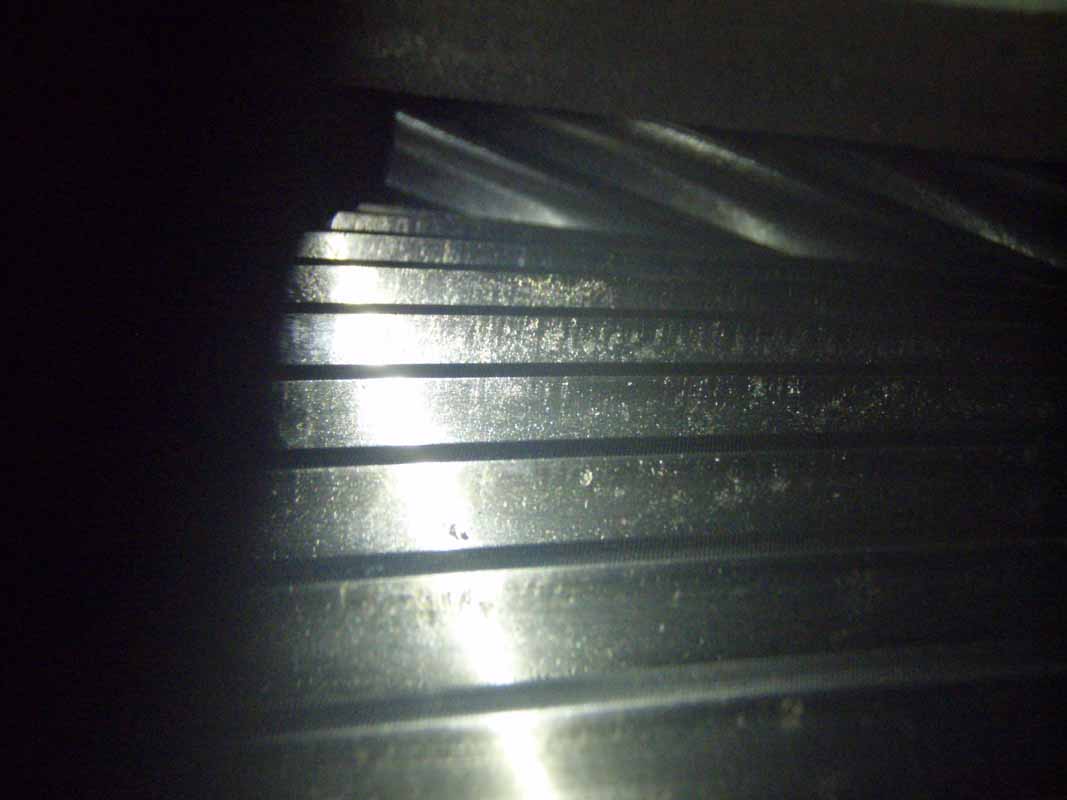

Condition: REBUILT WITH LIKE NEW GEARING
