- Speed Reducer Data Sheet -
HOME

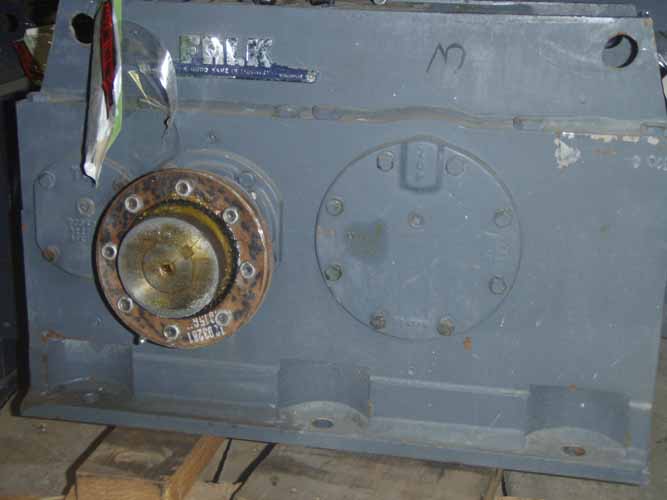

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.       005979
Model:      2050Y1-L Ratio:      6.929
MO# or S/N      93065886 Alt. S/N
IP Speed      1750 RPM HP rating      40 HP Cat. Rating
OP Speed:      252 RPM SF / SC      2.07 SF
Date      6-93 Oil Capacity      1.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      20,700 Lb-Inches Shaft Diameters High Speed:  1.750
Low Speed:  2.750
Weight      450 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
6.929

255 RPM
82 HP
1430 RPM
210 RPM
69 HP
1170 RPM
170 RPM
58.3 HP
870 RPM
130 RPM
44.8 HP
720 RPM
105 RPM
37.8 HP
580 RPM
85 RPM
31.1 HP
Notes:

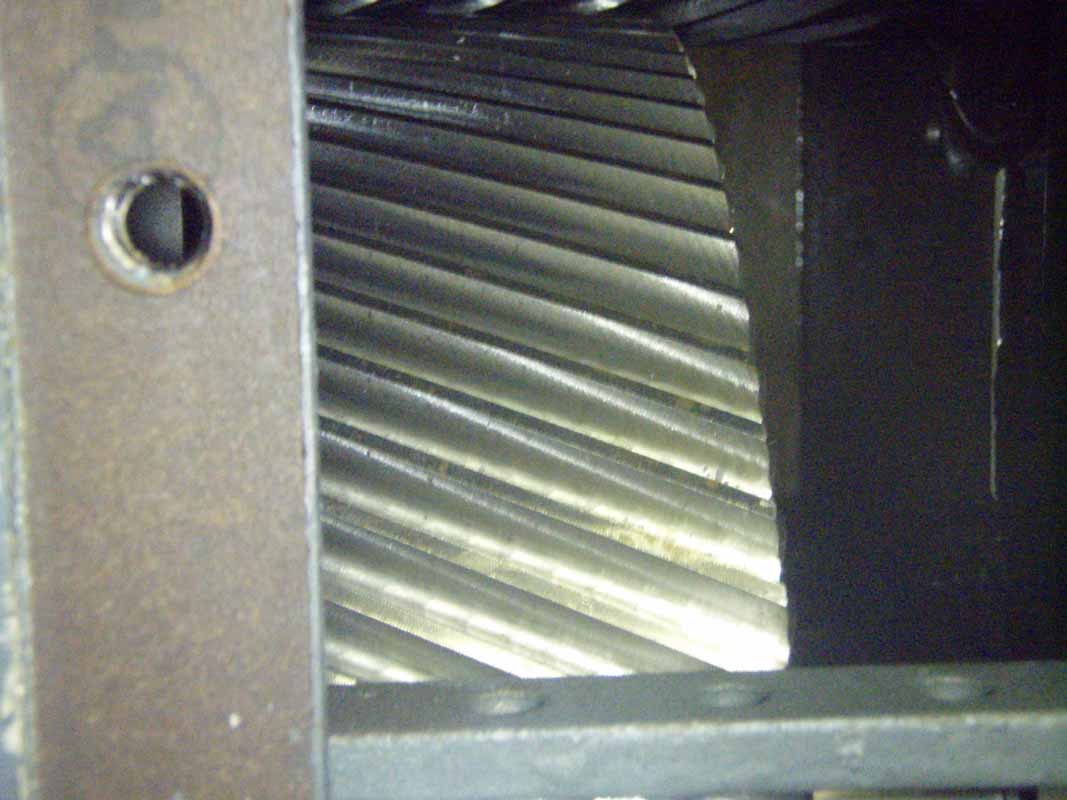

Condition:REBUILT LIKE NEW GEARING
