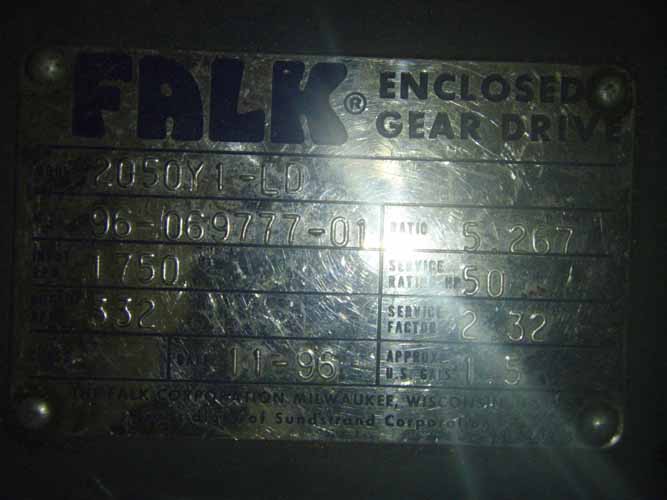

N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       005980
Model:       2050Y1-LD Ratio:       5.267
MO# or S/N       96-069777-01 Alt. S/N
IP Speed       1750 RPM HP rating      50 HP Cat. Rating
OP Speed:       332 RPM SF / SC       2.32 SF
Date       11-96 Oil Capacity       1.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       22,000 Lb-Inches Shaft Diameters High Speed:  1.750
Low Speed:  2.750
Weight      450 Lbs Approx. Assembly       1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5.267

350 RPM
116 HP
1430 RPM
280 RPM
97.2 HP
1170 RPM
230 RPM
81.7 HP
870 RPM
175 RPM
63 HP
720 RPM
140 RPM
53.2 HP
580 RPM
115 RPM
43.9 HP
Notes:

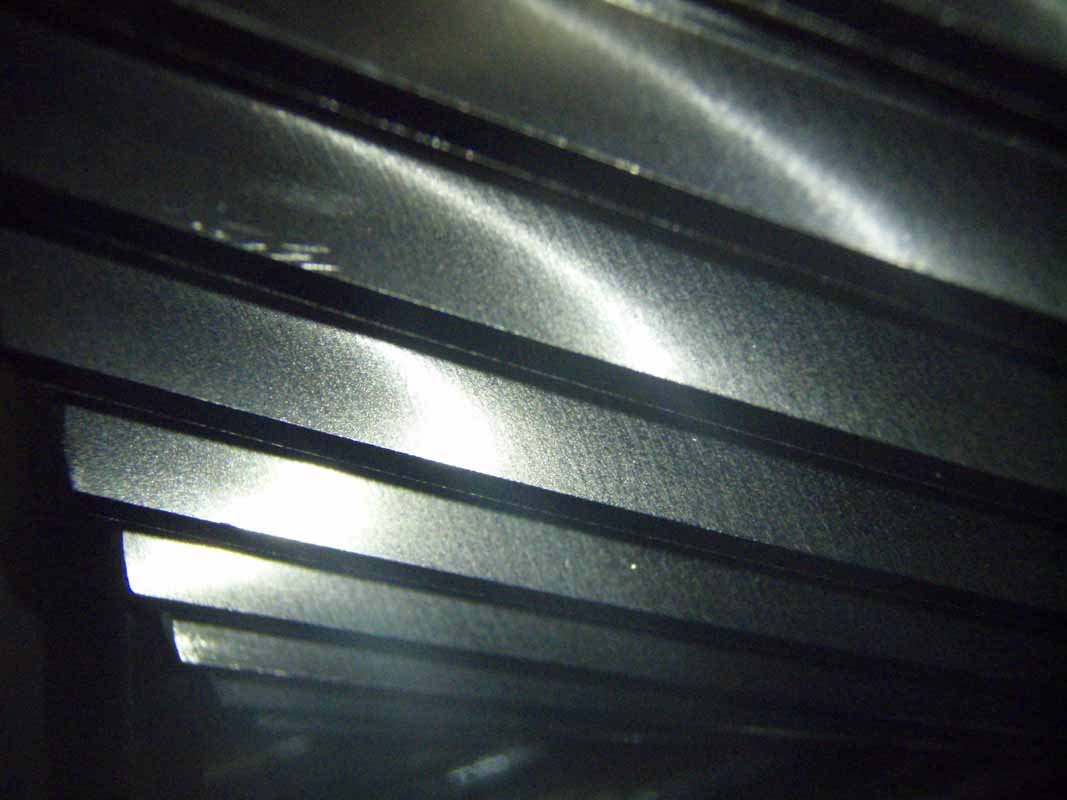

Condition: REBUILT GEARING LIKE NEW
