Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME

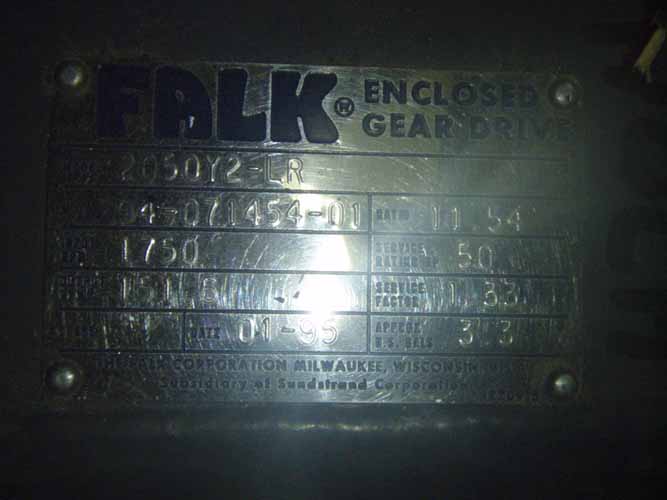

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      005983
Model:      2050Y2-LB Ratio:      11.54
MO# or S/N      94-071454-01 Alt. S/N
IP Speed      1750 RPM HP rating      50 HP Cat. Rating
OP Speed:       151.6 RPM SF / SC      1.33 SF
Date      1-95 Oil Capacity      3.3
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      27,700 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  2.750
Weight      450 Lbs Approx. Assembly      1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
11.54

155 RPM
66.7 HP
1430 RPM
125 RPM
55.7 HP
1170 RPM
100 RPM
46.5 HP
870 RPM
77 RPM
35.5 HP
720 RPM
62 RPM
29.8 HP
580 RPM
50 RPM
24.4 HP
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
