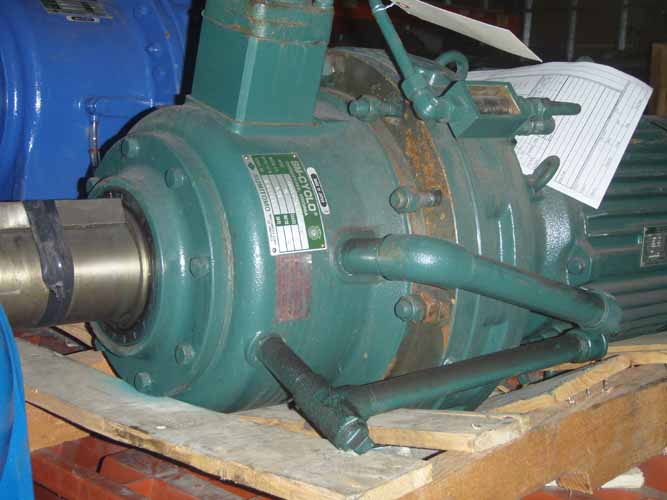

R E D U C E R       N A M E P L A T E       D A T A
MANUFACTURER      SM-CYCLO Our ID No.      006036
MODEL:      VFMS-3205/14-AV RATIO      231
HP      10 SERVICE FACTOR      CL I
INPUT SPEED       OUTPUT SPEED      7.58
S/N      A407683 Torque       lb-in

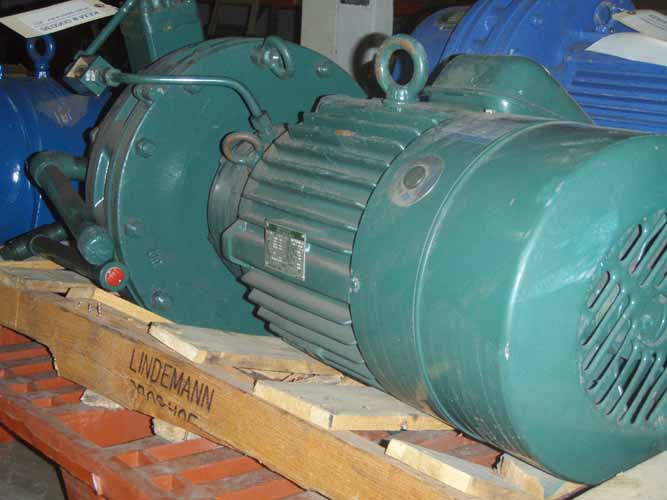

M O T O R       N A M E P L A T E       D A T A
HP      10 Poles      4 TYPE      TK-FV/CMB-15
Volts      480       68 FRAME      G-160M
Hz      60       6 M/B INS. CLASS      B / F
MOTOR AMP      11.2       10.3 DUTY      CONT
RPM      1765       155 SERVICE FACTOR      1.0
CODE       MAX. AMB      40 C
BRAKE AMP       BRAKE TORQUE       FT-LB
SERIAL NO.       NEMA DESIGN      B
RPM
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  3.875
Notes:
Condition:
New Surplus
Weight = 750 Lbs

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
