Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

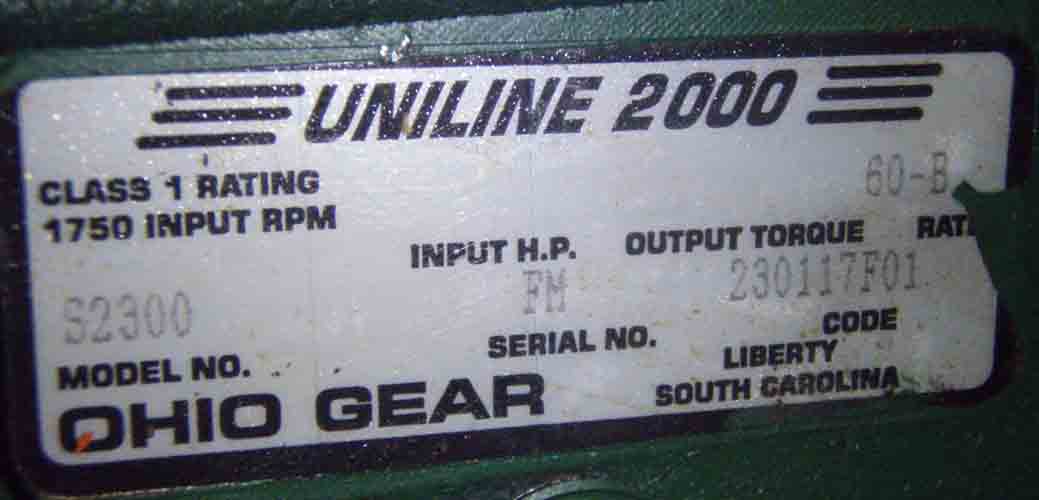

N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR     UNILINE 2000 SERIES Our ID No.      006051
Model No:      S2300 Ratio:      60
S/N      FM 230117F01 Center Distance      3.00
IP Speed      1750 HP rating
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,980 Lb-Inches Shaft Diameters High Speed:  0.875
Low Speed:  1.250
Weight      68 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60:1

29 RPM
1.317 HP
1170 RPM
19 RPM
1.121 HP
870 RPM
14 RPM
1.018 HP
Notes:
    Unused Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
