Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

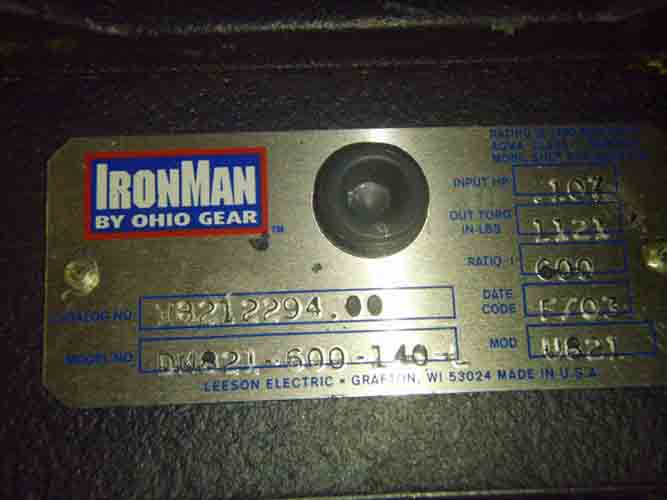

N A M E P L A T E       D A T A
Manufacturer:      OHIO GEAR     IRONMAN Our ID No.      006086
Model No:      DM821-600-140-L Ratio:      600 (P=30:1 / S=20:1)
CATALOG NUMBER      W8212294.00 Center Distance      P=1.33 / S=2.06
IP Speed      1750 HP rating      0.107
OP Speed:      2.92 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,121 Lb-Inches Shaft Diameters High SpeeD:  140TC (0.500)
Low Speed:  1.000
Weight      50 Lbs Approx. Assembly      R1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
600:1

2.92 RPM
0.107 HP
1170 RPM
1.95 RPM
0.078 HP
870 RPM
1.45 RPM
0.062 HP
Notes:
   NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
