Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:       BROWNING Maysville, KY

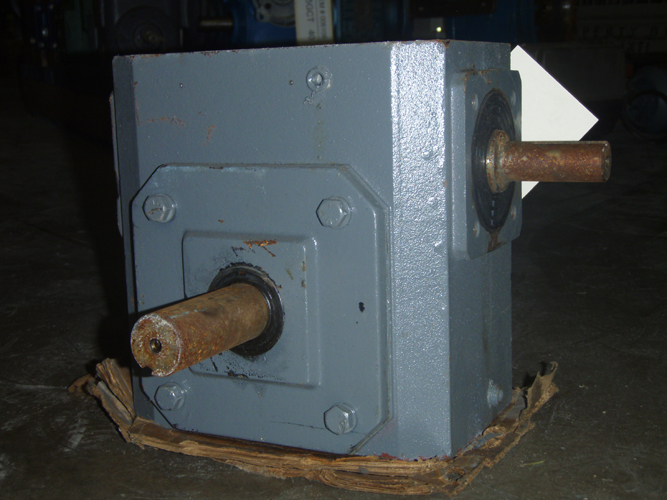

      WORM GEAR SPEED REDUCER 		Our ID No.      006117
Model No:      300ULR20 Ratio:      20
S/N       Center Distance      3.00
IP Speed      1750 HP rating      3.31
OP Speed:      87.5 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,957 Lb-Inches Shaft Diameters High Speed:  0.875
Low Speed:  1.250
Weight      57 Lbs Approx. Assembly      WO Double Output
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
20 :1

87.5 RPM
3.13 HP
1170 RPM
58.5 RPM
2.61 HP
870 RPM
RPM
HP
Notes:
   Unused Surplus
