- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:       MAKISHINKO Our ID No.       006134
Model:       B 100C 10 Ratio:       10:1
MO# or S/N       980319 Alt. S/N
IP Speed       HP rating       Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       2610 Lb-Inches Shaft Diameters High Speed:   .984
Low Speed:   1.49
Weight       82 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
10:1

175 RPM
8.78 HP
1430 RPM
143 RPM
7.98 HP
1170 RPM
117 RPM
6.97 HP
870 RPM
87 RPM
5.9 HP
720 RPM
72 RPM
4.71 HP
Notes:
Condition: NEW SURPLUS
CENTER DISTANCE: 3.94



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

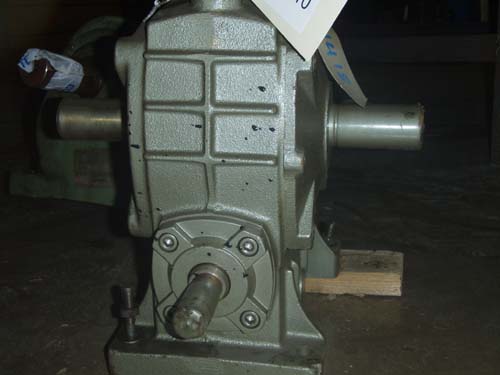

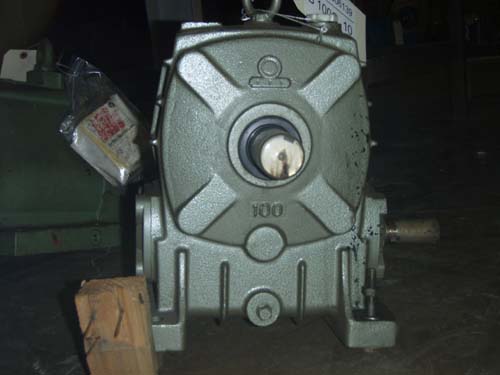

Click on images for larger view.
