- Speed Reducer Data Sheet -

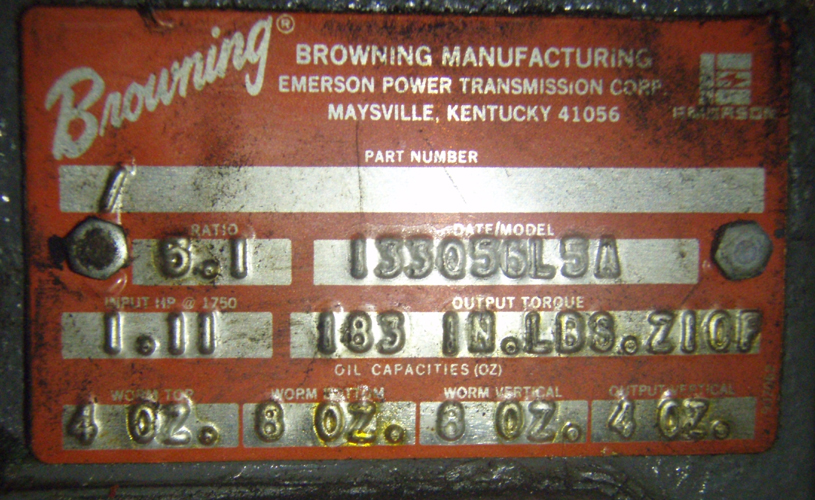

N A M E P L A T E       D A T A
Manufacturer:       BROWNING Maysville, KY
      WORM GEAR SPEED REDUCER 		Our ID No.      006146
Model No:      133Q56L5A Ratio:      5
S/N       Center Distance      1.33
IP Speed      1750 HP rating      1.11
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      183 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  0.625
Weight      17 Lbs Approx. Assembly      WOLH
