Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:       BROWNING Maysville, KY
      WORM GEAR SPEED REDUCER 		Our ID No.      006150
Model No:      133ULR15A Ratio:      15
S/N       Center Distance      1.33
IP Speed      1750 HP rating      0.49
OP Speed:      116 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      225 Lb-Inches Shaft Diameters High Speed:  0.500
Low Speed:  0.625
Weight      11 Lbs Approx. Assembly      WO Double Output
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
15 :1

116 RPM
0.49 HP
1170 RPM
78 RPM
0.36 HP
870 RPM
RPM
HP
Notes:
   Unused Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

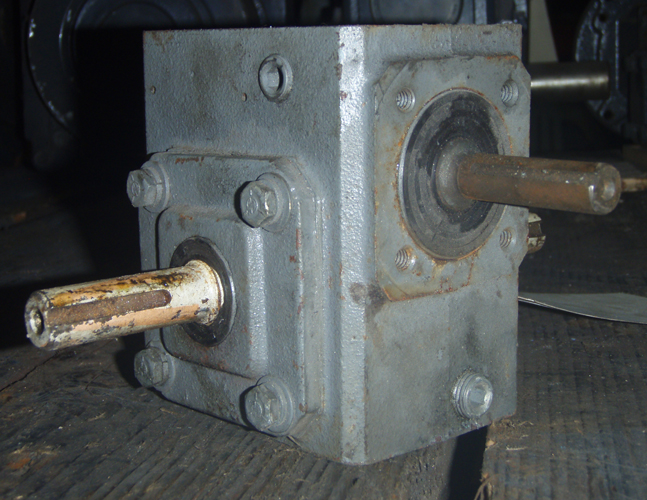

Click on images for larger view.
